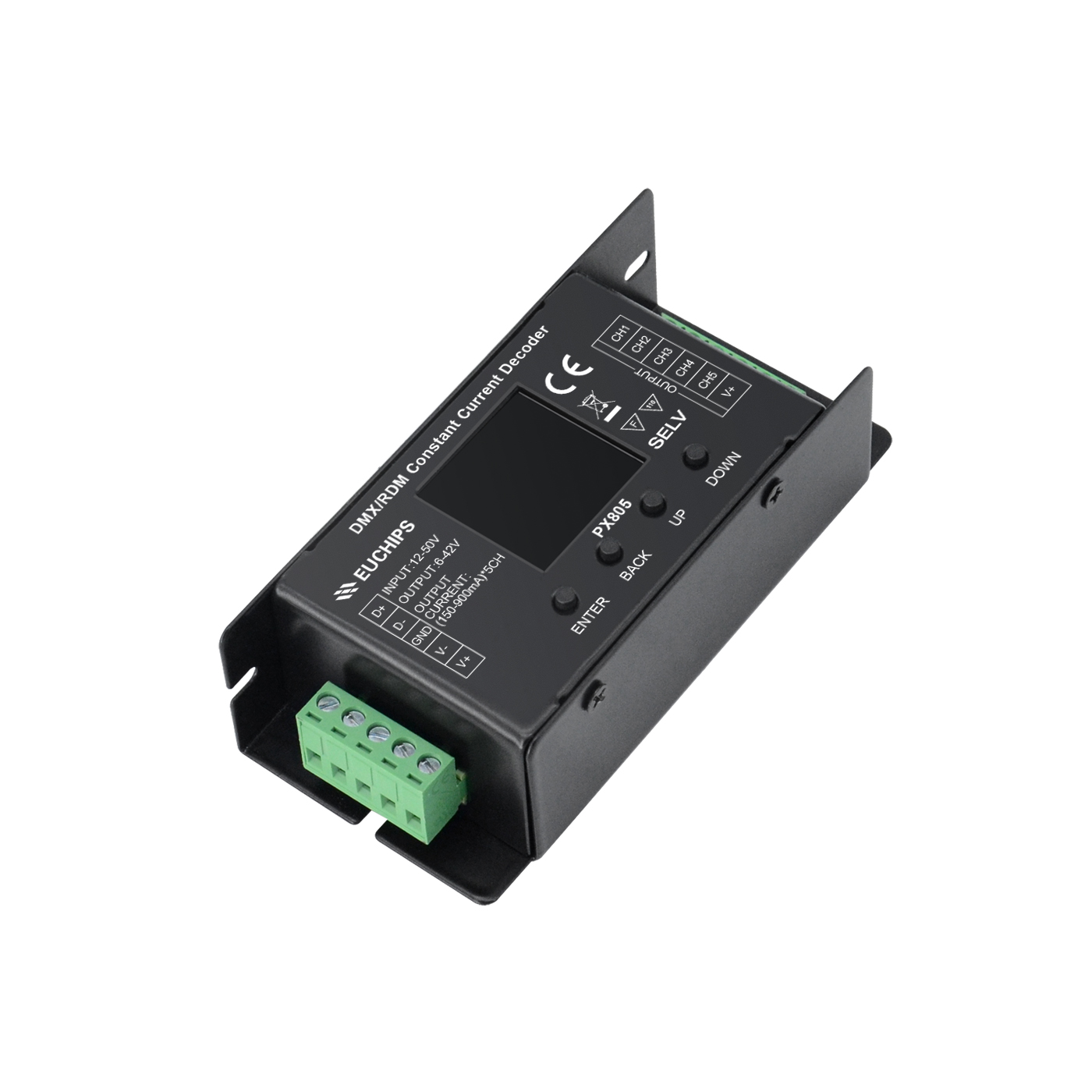

12-50VDC 5ch DMX Decoder PX805

Short Description:

·Meet DMX512/1990, RDM/2009 international standard protocol

·5 output channels, output current 150 to 900 mA per channel, 16 gears adjustable, 50mA per gear change

·Can easily set DMX address by button

·Can easily set output current each channel

·With the light color selected mechanism, and be able to control the light with 1~5 colors

·8 Bit /16 Bit level brightness, full-color control

·For customer setup and use easily, the default address code is 1

·Address setting become brightness setting when DMX signal isn’t connected

·Suitable for buildings, hotels, KTV, home and other places


Product Detail

Product Tags

Technical Paramaters

Channels 5 channels
Input Voltage 12-50V DC
Standby power <0.5W
No load power <1W
Output Voltage 6-42V DC
Output Current 150-900mA per channel (Factory Defaults:150mA)
Output Power 37.5W*5CH MAX187.5W
Protection Short-circuit protect,Over current protect, Over temp protect
Dimension 116(L)×54(W)×35(H) mm
N.G. 235g
Operation Temperature -20 - 50 ℃

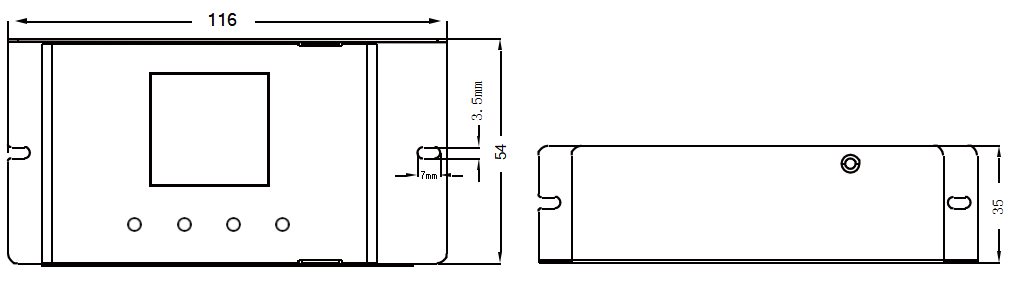

Product Size

1

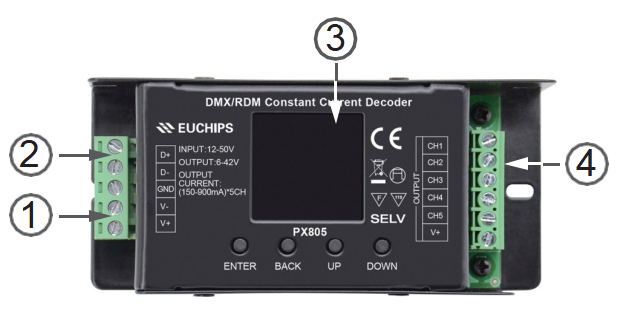

Interface Description

2

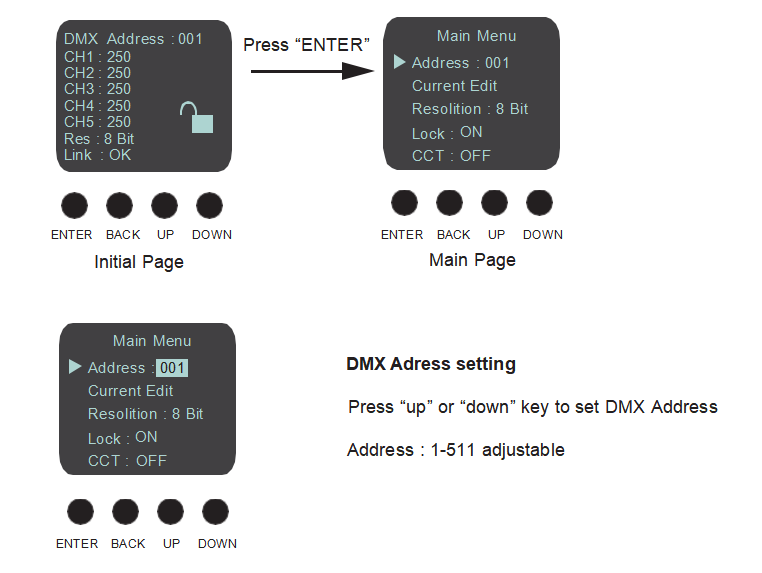

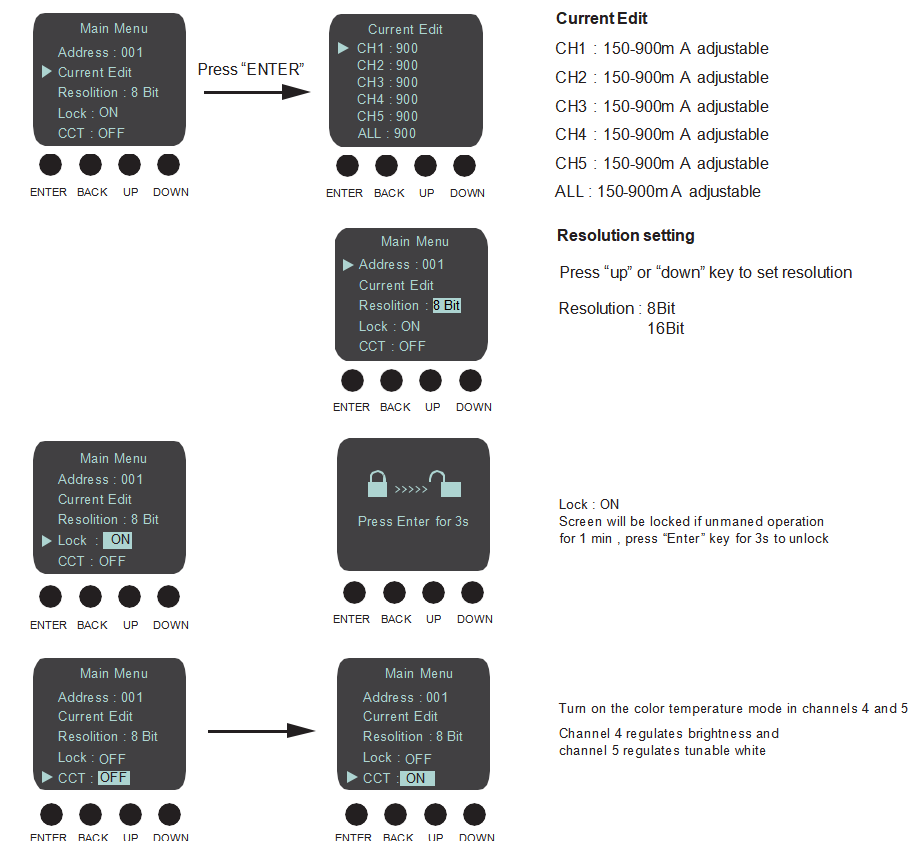

OLED Screen Description

3
Button Name Function
Enter Enter Button ( focus on the option menu pointed by the cursor and enter the

state of this optionmenu.

BACK Back Button, return to the ;previous menuexit the state of this option
Up Move the cursor up, change the state of the option
Down Move the cursor down, change the state of the option

The product restores the default initial page which shows the current parameter information and working status when power on again. Please press “ENTER” to homepage. If there is no operation in 1 minute,the OLED screen will restore the initial page.

3
4

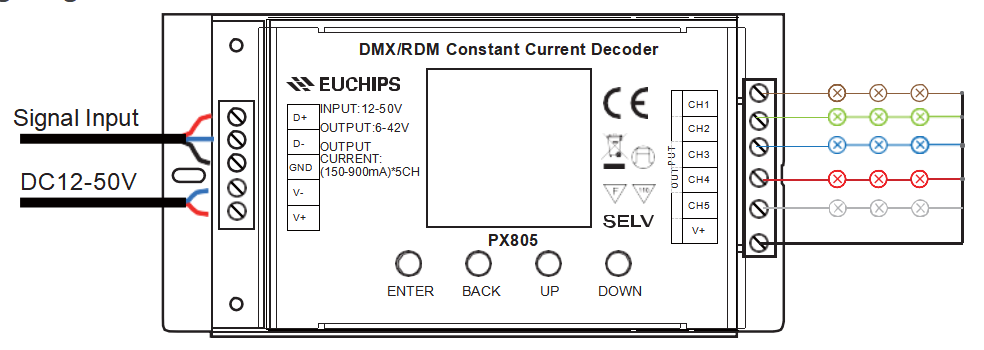

Wiring Diagram

5

1.This controller is a buck type, not a boost type.The input voltage is supplied by a constant voltage power supply with appropriate power. The output voltage of the constant voltage power supply should be in the range of 12 - 50V, such as 12V, 24V, 36V and 48V. At the same time, the voltage of this constant voltage power supply should be at least 6V higher than the service voltage of the lamp connected to the controller's output terminal. If the service voltage of the lamp is 9V, then the constant voltage power supply should be 24V, 36V or 48V, such as 36V, the constant voltage power supply should be 48V.

2.Do not overload

3.Installed in a ventilated and dry environment , should ensure that all wiring is correct before electricity

4.Before commissioning of the power

5.If failure, do not secretly maintenance, please contact the supplie
