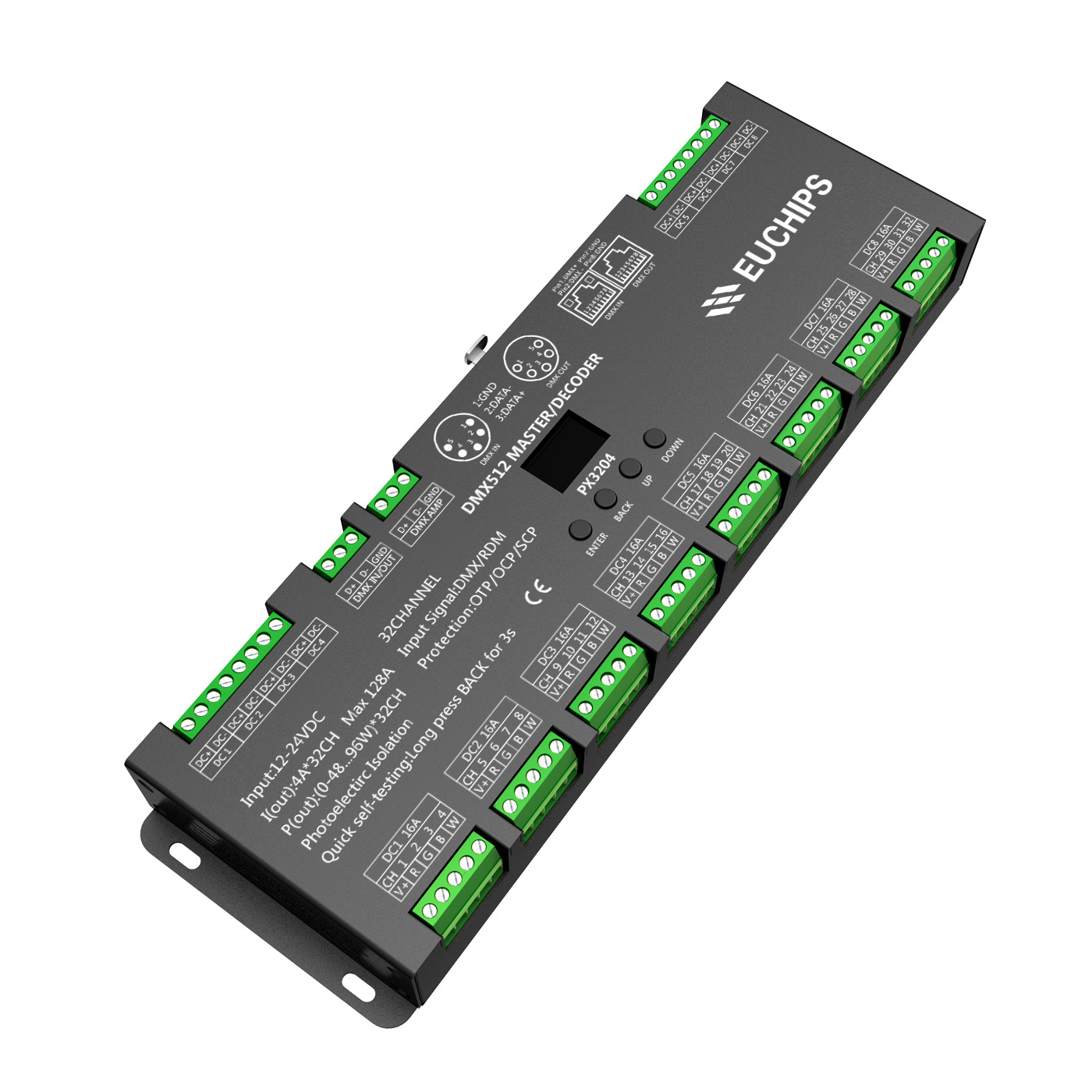

·32 channels output, the maximum current of 4A/ch for RGBW decoder, up to 3072w-Can be used as stand alone DMX Master controller
·OLED Screen and touch button, more convenient operation
·27 sence modes built-in, with speed and brightness adjust function·4 kinds of optional: DIM,CT,RGB,RGBW
·3 kinds of DMX ports: Green teminal，RJ45,XLR-5
·Short-circuit protection,overload protection,over-temperature protection-Fast self-testing function
·8 bit / 16 bit resolution optional (master mode support 8bit only)-Multiple dimming curve:(0.1~9.9), liner, log
·Meets DMX512/1990,RDM /2009 protocol- Supported RDM parameters:
DISC_UNIQUE_BRANCHDISC_MUTE
DISC_UN_MUTEDEVICE_INFO
SOFTWARE_VERSION_LABELDMX512/RDM_START_ADDRESsIDENTIFY_DEVICE
MANUFACTURER_LABELSUPPORTED_PARAMETERS
