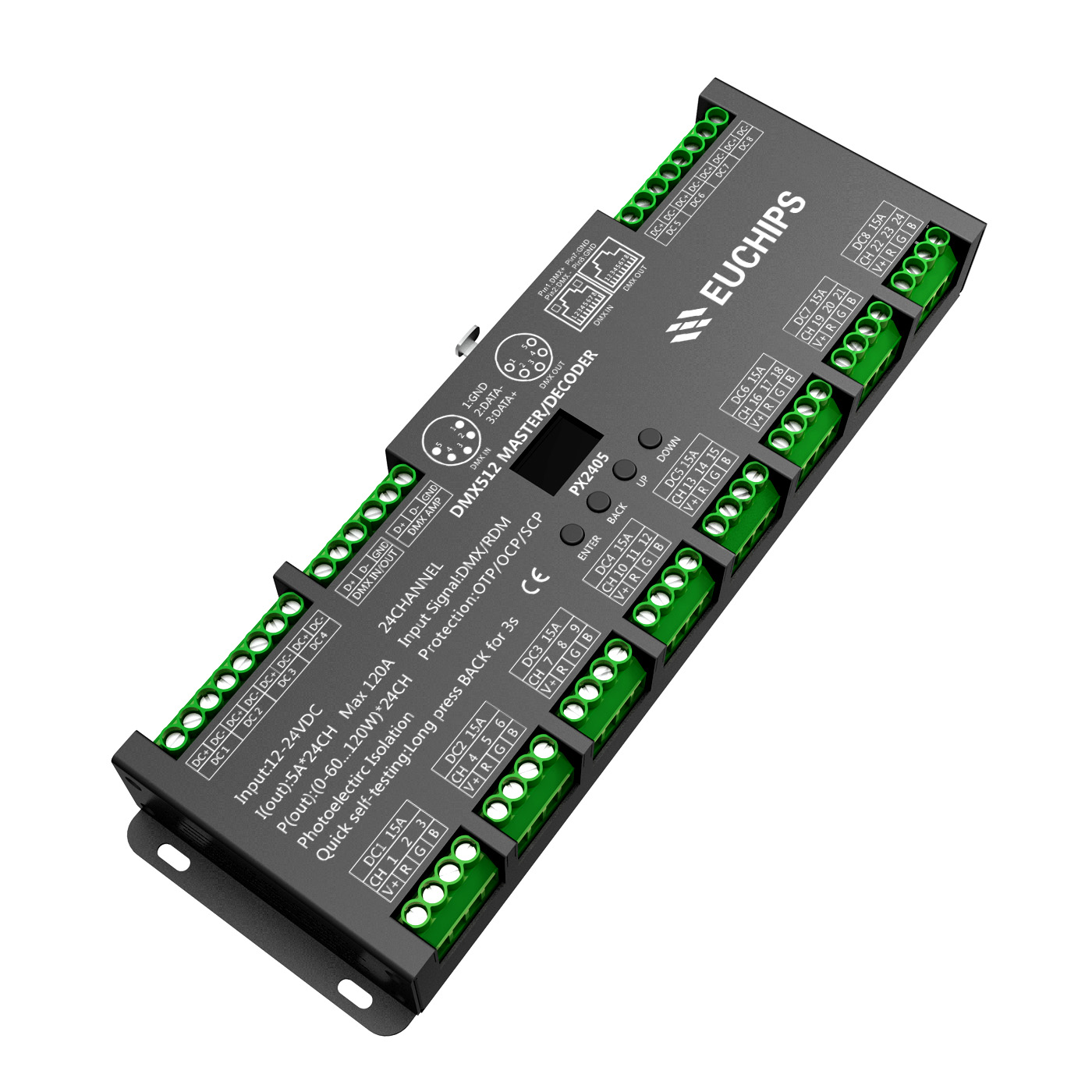

12-24VDC 5A*24ch DMX Decoder PX2405

Short Description:

24 channels output, the maximum current of 5A/ch for RGB decoder, up to 2880w-Can be used as stand alone DMX Master controller

OLED Screen and touch button, more convenient operation

27 sence modes built-in, with speed and brightness adjust function- 3 kinds of optional: DIM,CT,RGB

3 kinds of DMX ports: Green teminal,RJ45,XLR-5

Short-circuit protection,overload protection,over-temperature protectionFast self-testing function

8 bit / 16 bit resolution optional (master mode support 8bit only)Multiple dimming curve:(0.1~9.9), liner, log

Meets DMX512/1990,RDM /2009 protocol

Supported RDM parameters:

DISC_UNIQUE_BRANCHDISC_MUTE

DISC_UN_MUTEDEVICE_INFO

SOFTWARE_VERSION_LABELDMX512/RDM_START_ADDRESSIDENTIFY_DEVICE

MANUFACTURER_LABELSLIpPORTFD PARAMETFRc
