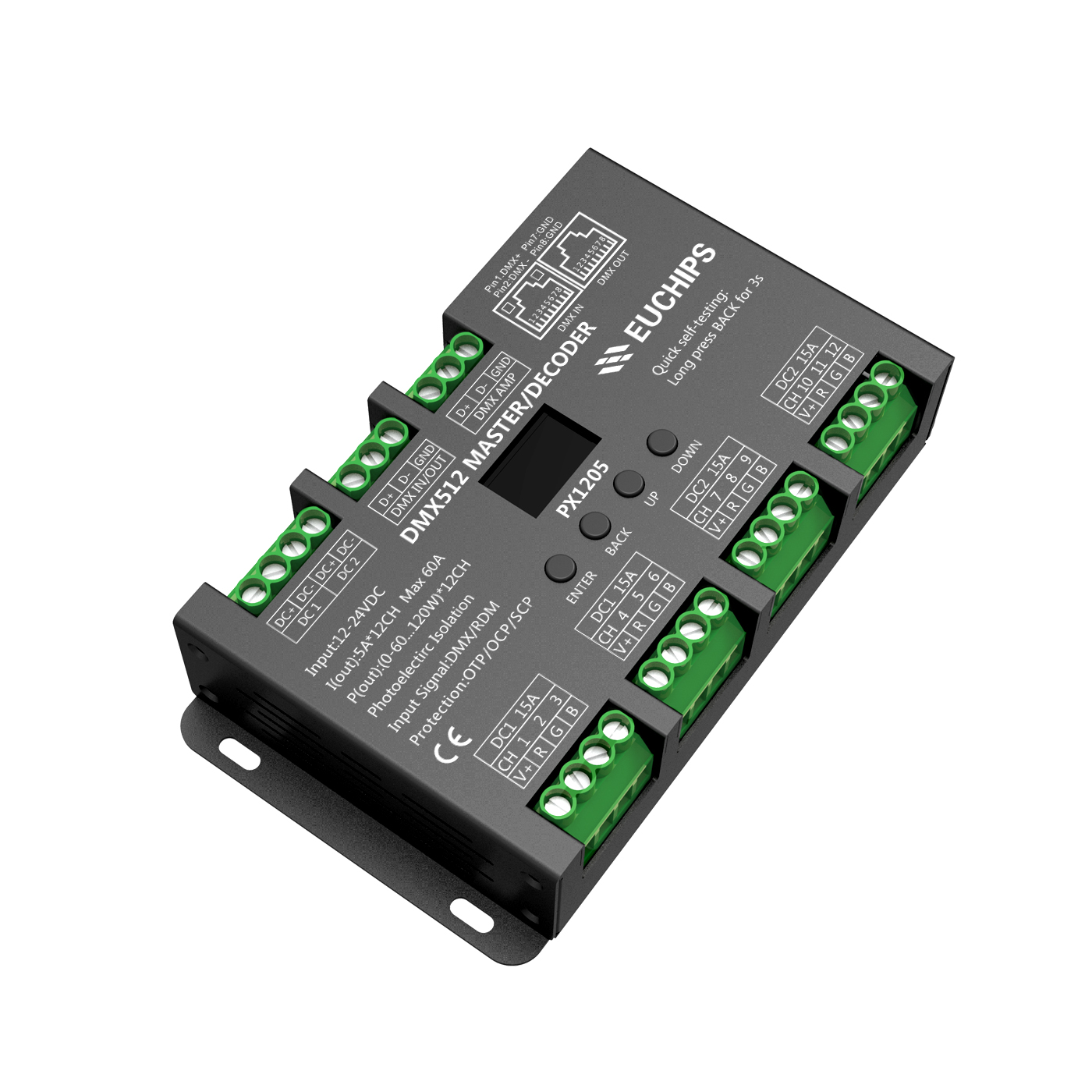

·12 channels output, the maximum current of 5A/ch for RGB decoder, up to 1440w·Can be used as stand alone DMX Master controller
·OLED Screen and touch button, more convenient operation
·27 sence modes built-in, with speed and brightness adjust function- 3 kinds of optional: DIM,CT,RGB
·2 kinds of DMX ports: Green teminal,RJ45
·Short-circuit protection,overload protection,over-temperature protection·Fast self-testing function
·8 bit / 16 bit resolution optional (master mode support 8 bit only)
·Multiple dimming curve:(0.1~9.9), liner, log
·Meets DMX512/1990,RDM /2009 protocol
·Supported RDM parameters:
DISC_UNIQUE_BRANCHDISC_MUTE
DISC_UN_MUTEDEVICE_INFO
SOFTWARE_VERSION_LABELDMX512/RDM_START_ADDRESsIDENTIFY_DEVICE
MANUFACTURER_LABELSUPPORTED_PARAMETERS
