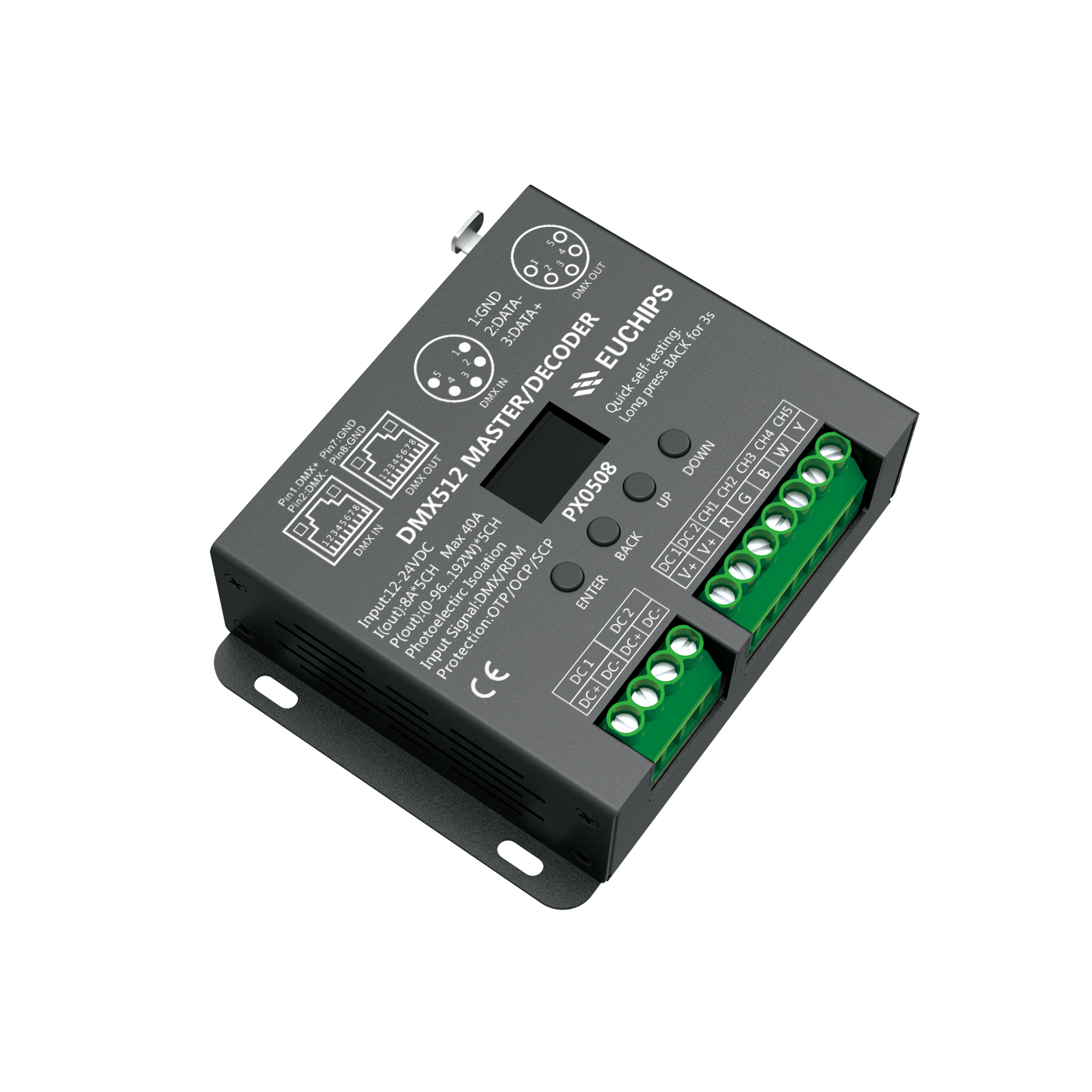

12-24VDC 8A*5ch DMX Decoder PX0508

Short Description:

· 5 channels output, the maximum current of 8A /ch for RGBWY decoder, up to 960w·Can be used as stand alone DMX Master controller

·OLED Screen and touch button, more convenient operation

·27 sence modes built-in, with speed and brightness adjust function·5 kinds of optional: DIM,CT，RGB,RGBW,RGBWY

·2 kinds of DMX ports: XLR-5，RJ45

-Short-circuit protection,overload protection,over-temperature protection-Fast self-testing function

-8 bit / 16 bit resolution optional(master mode support 8bit only)-Multiple dimming curve: (0.1~9.9), liner, log

-Meets DMX512/1990,RDM /2009 protocol. Supported RDM parameters:

DISC_UNIQUE_BRANCHDISC_MUTE

DISC_uN_MUTEDEVICE_INFO

SOFTWARE_VERSION_LABELDMX512/RDM_START_ADDRESSIDENTIFY_DEVICE

MANUFACTURER_LABELsUPPORTED_PARAMETERS

Send email to us Download as PDF

Product Detail

Product Tags

Summary

Welcome to use PX series DMX512/RDM decoder & driver. PX series adopt the advanced micro-computer control technology and converted the DMX512,RDM/2009 digital signal widely used ininternational to the PWM control signal.1~5 channels output for option and each channel able toachieve 256 or 65536 gradations of controlling, and also it can be used as the connector of PCdigital light controller and analog light modulator. lt is mainly used for the controlling of buildings &lights applied LED.
