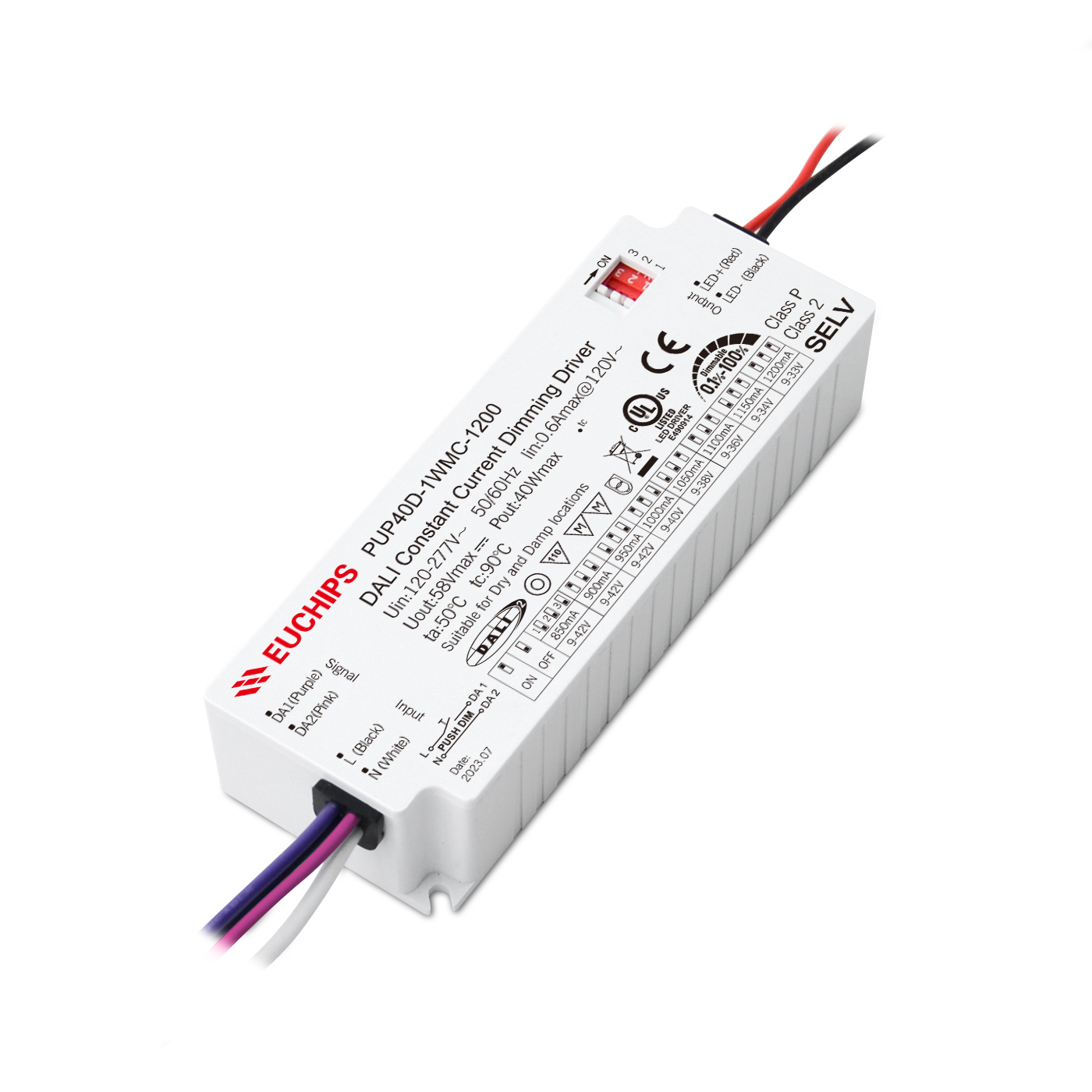

40W 1200mA DALI CC Driver PUP40D-1WMC-1200
Summary
PUP40D-1WMC-1200 is a constant current output mode LED driver. Support DALI dimming function, Touch DIM (Push DIM) function. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.
Technical Paramaters
| Model | PUP40D-1WMC-1200 | |
| Output | Current/Voltage/Power | 850mA/9-42V/35.7W 950mA/9-42V/39.99W 1050mA/9-38V/39.9W 1150mA/9-34V/39.1W 900mA/9-42V/37.8W 1000mA/9-40V/40W 1100mA/9-36V/39.6W 1200mA/9-33V/39.6W |
| Channel | 1 | |
| No load output voltage | 58V Max | |
| Frequency | 1KHz Min PWM | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | <3% | |
| Input | Voltage | 120VAC-277VAC |
| Frequency | 50/60Hz | |
| Efficiency | >87%@120VAC, Full load | |
| PF | ≥0.99@120VAC, Full load | |
| THD(full load) | <10%@120VAC, Full load | |
| Current | 0.6Amax@120VAC | |
| Inrush Current | Cold start,30A@120VAC | |
| Standby Power | <1W | |
| Protection | Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Close output, recovers automatically after fault removed | |
|
Safety & EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
| Function | Dimming type | DALI/Touch DIM (Push DIM) |
| Dimming range | 0.1%-100% Dimming to off | |
|
Others |
Dimension | 121*44*26.5mm(4.76*1.73*1.04)(L*W*H) |
| Pack Information | Net weight: 217g(0.47 lb)±5%/PCS; 50PCS/Carton; 11.35kg (25 lb)±5%/Carton; Carton Size:286x239x194mm (11.25*9.4*7.63)(L*W*H) | |
| IP rating | IP20 | |
| Working temp. | -20℃~50℃(-4°F~122°F) | |
| tc | 90℃ (194°F) | |
| Relative humidity | 20~90% RH | |
| Lifetime | 50,000h@tc:85℃(185°F) | |
| Material | PC | |
| Switch cycle | >25,000 times | |
Applications
Dimension(mm)

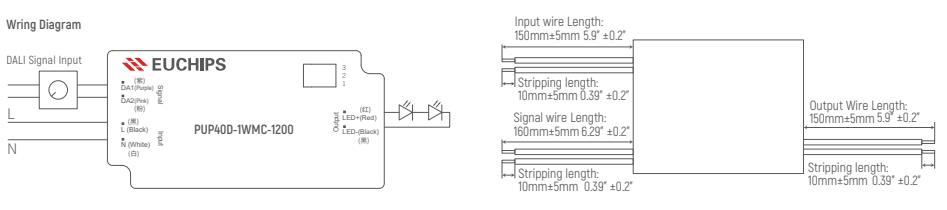

Wring Diagram

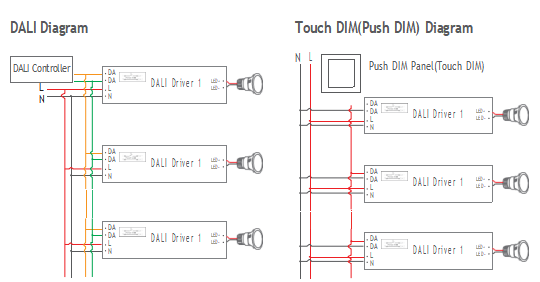

DALI Diagram
Remark: Only use open push button without indicator light. Maximum cable length between each Unit: 20 meters.

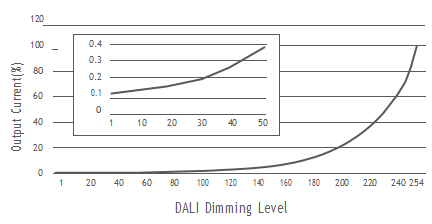

Dimming Curve
Push DIM Function
1.Press the Touch DIM (Push DIM) switch for 8s or more,the driver can be controlled via Push DIM switch.
2.Short press the Touch DIM (Push DIM) switch (<0.5s) to control the lamp on or off.
3.Long press the Touch DIM (Push DIM) switch (>0.5s) to dim the brightness of light. The dimming direction will change every time after pressing switch.
4.Double-click the Touch DIM (Push DIM) switch (<0.3s), then all lamps connected on the device will be set maximum brightness.
5.The brightness adjustment range is 1%-100%, and the light can be turned off through short pressing when doing the adjustment with long pressing Push DIM switch.
6.With the Power off memory function, the power-down state will be recovered when power on again.
Current Selection Table
PUP40D-1WMC-1200 is a multi-current dimming driver, output current level selectable by DIP S.W., as the following:
Remark: Function default setting is: 850mA (@switch are all OFF state)
Type HL Class P Output type-CC Dry and Damp location Class 2 Ground enclosure in installation
For Connections Use Wire Rated for at Least 90 ℃（194°F） Wired control Circuits lsolated, Use only within an enclosure More than one power supply present
Cautions
1.This product should be installed by qualified personnel.
2.This product is non waterproof, need to avoid sun and rain.In case of outdoor use, please ensure it is mounted in a water proof enclosure.
3.Good heat dissipation conditions extend product life.Please install the product in a well-ventilated environment.
4.Please make sure LED power supply output voltage, current is used to meet the product requirements.
5.Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
6.Due to safety concerns, PVC or rubber cord of 0.75-2.5mm2 is recommended for input and output terminal(s) (excluding signal terminals). Flat power cord is not suitable.Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
7.In case of malfunction, do not repair it yourself.
