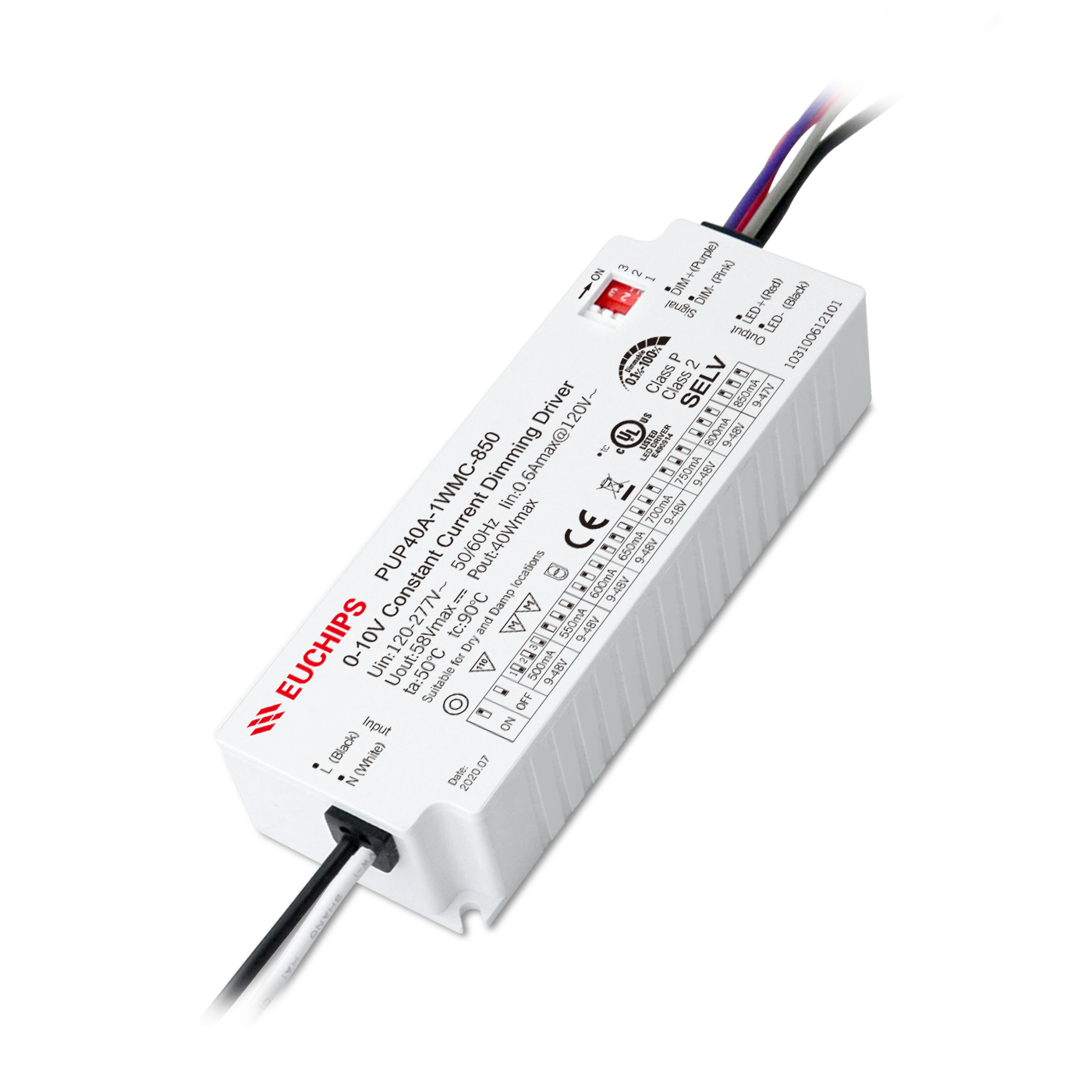

40W 850mA 0-10V CC Driver PUP40A-1WMC-850

Short Description:

Single channel output, output current level selectable by DIP S.W.

Support 3-in-1 dimming mode:0-10V active signal, adjustable resistance, PWM(A model)

Input voltage of 120VAC ~ 277VAC

Dimming range: 0.1-100%,Dimming effect smooth, no flicker

Protections: Short circuit, Over load,Over voltage

Suitable for indoor LED lighting application


Product Detail

Product Tags

Summary

PUP40A-1WMC-850 is a constant current output mode LED driver. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.

Technical Paramaters

Model PUP40A-1WMC-850
Input Voltage 120VAC-277VAC
Frequency 50/60Hz
Efficiency >87%@120VAC, Full load
PF ≥0.99@120VAC, Full load
THD(full load) <10%@120VAC, Full load
Current 0.6Amax@120VAC
Inrush Current Cold start,30A@120VAC
Standby Power <1W
Current/Voltage/Power 500mA/9-48V/24W 600mA/9-48V/28.8W 700mA/9-48V/33.6W 800mA/9-48V/38.4W
550mA/9-48V/26.5W 650mA/9-48V/31.2W 750mA/9-48V/36W 850mA/9-47V/39.95W
Channel 1
Output No load output voltage 58V Max
Frequency 1KHz Min PWM
Current Accuracy ±5%
LF current ripple(<120Hz) <3%
Protection Over Voltage Hiccup, recovers after fault condition is removed
Over load Hiccup, recovers after fault condition is removed
Short circuit Close output, recovers automatically after fault removed

Safety & EMC

Surge L-N:1KV
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m
Safety standards UL8750/UL1310/CSA25013,CSA class P
EMI Eission EN55015,EN61000-3-2 Class C,IEC61000-3-3
EMC Immunity FCC class B(120V)/class A(277V)
Function Dimming type 0-10V(Type A)
Dimming range 0.1%-100% Dimming to off
Others Dimension 121*44*26.5mm(4.76*1.73*1.04 Inch)(L*W*H)
Pack Information Net weight: 156g(0.34 lb)±5%/PCS; 50PCS/Carton; 8.3kg (18.29 lb)±5%/Carton; Carton Size:286x239x194mm (11.25*9.4*7.63)(L*W*H)
IP rating IP20
Working temp. -20℃~50℃(-4°F~122°F)
tc 90℃ (194°F)
Relative humidity 20~90% RH
Lifetime 50,000h@tc:85℃(185°F)
Material PC
Switch cycle >25,000 times

Applications

1

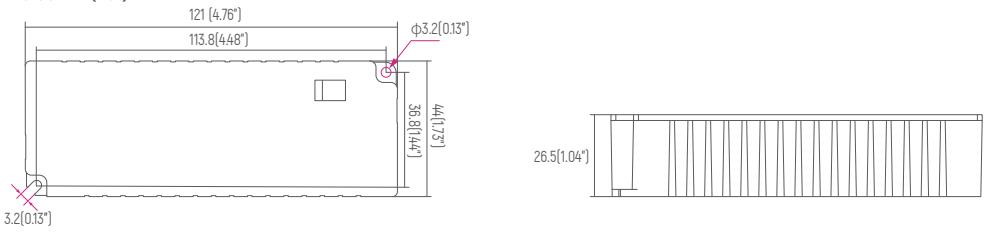

Dimension(mm)

PUP40A-1WMC-850-接线

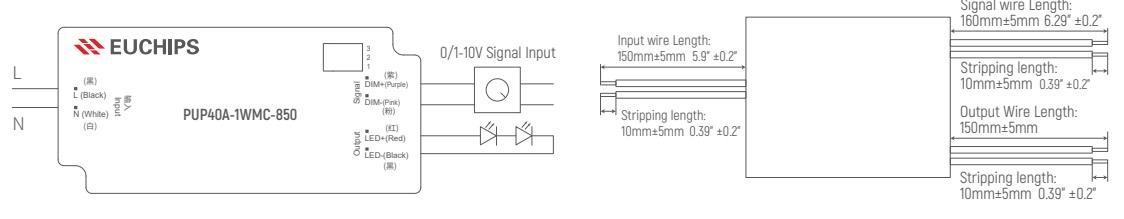

Wring Diagram

PUP40A-1WMC-850-接线2

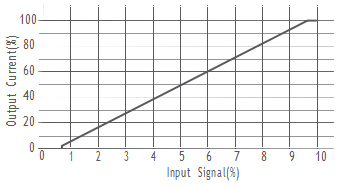

Dimming Curve

D

Current Selection Table

PUP40A-1WMC-850 is a multi-current dimming driver, output current level selectable by DIP S.W., as the following:

PUP40A-1WMC-850table

Remark: Function default setting is: 500mA (@switch are all OFF state)

Type HL Class P Output type-CC Dry and Damp location Class 2 Ground enclosure in installation
For Connections Use Wire Rated for at Least 90 ℃(194°F) Wired control Circuits lsolated, Use only within an enclosure More than one power supply present

G

Cautions

1.This product should be installed by qualified personnel.

2.This product is non waterproof, need to avoid sun and rain.In case of outdoor use, please ensure it is mounted in a water proof enclosure.

3.Good heat dissipation conditions extend product life.Please install the product in a well-ventilated environment.

4.Please make sure LED power supply output voltage, current is used to meet the product requirements.

5.Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.

6.Due to safety concerns, PVC or rubber cord of 0.75-2.5mm2 is recommended for input and output terminal(s) (excluding signal terminals). Flat power cord is not suitable.Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.

7.In case of malfunction, do not repair it yourself.
