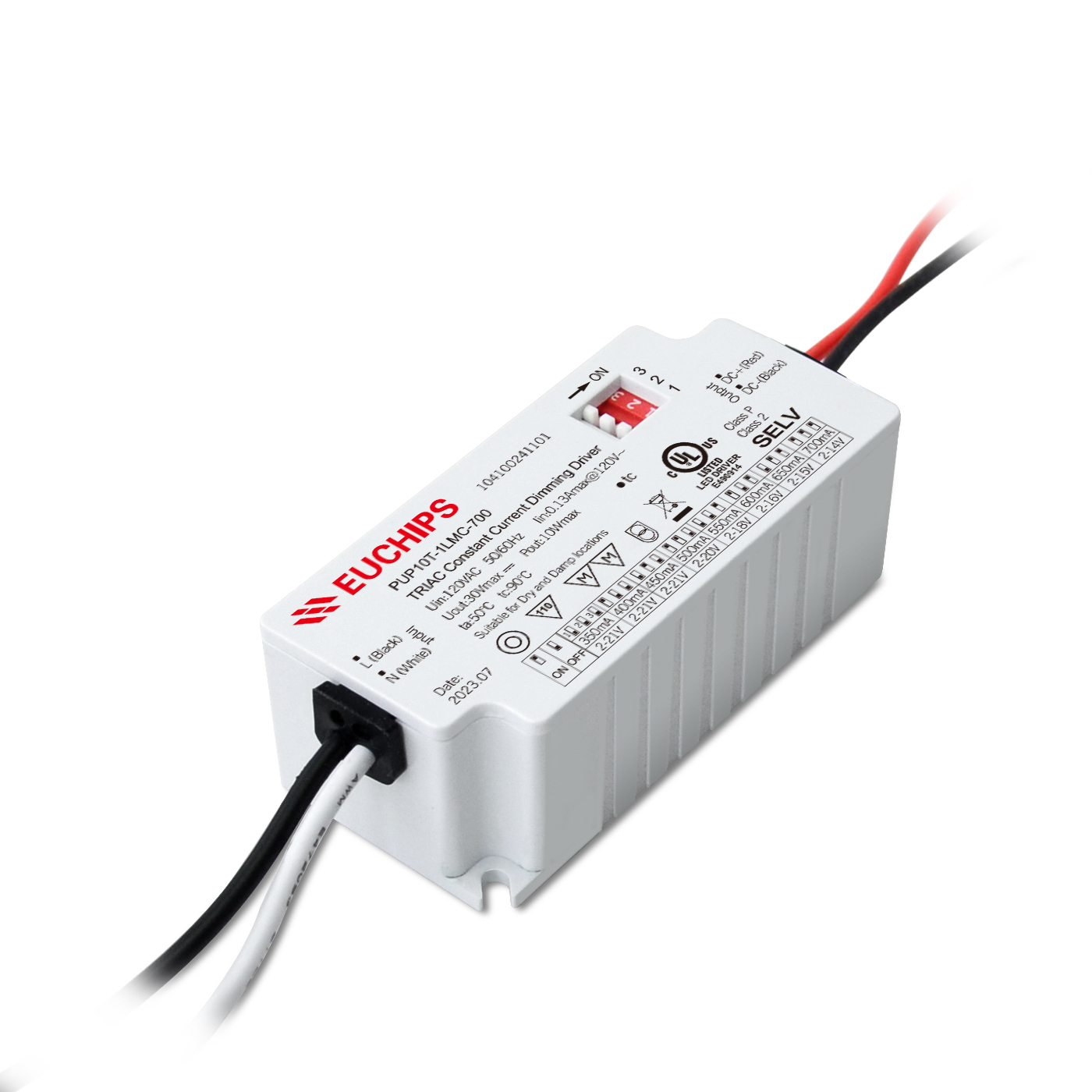

10W 700mA Triac CC Driver PUP10T-1LMC-700
Summary
PUP10T-1LMC-700 is a constant current output mode LED driver.The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, achieve a smooth dimming effect.
Technical Paramaters
|
Model |
PUP10T-1LMC-700 | |
|
Input |
Efficiency | 70%@120VAC, Full load |
| Voltage | 120-277VAC | |
| Frequency | 50/60Hz | |
| Power Factor | 0.92@120VAC, Full load | |
| THD | <20%@120VAC, Full load | |
| Current | 0.13Amax@120VAC, Full load | |
| Inrush Current | Cold start, 30A@120VAC | |
|
Current/Voltage/Power |
350mA/2-21VDC/7.35W 400mA/2-21VDC/8.4W 450mA/2-21VDC/9.45W 500mA/2-20VDC/10W
550mA/2-18VDC/9.9W 600mA/2-16VDC/9.9W 650mA/2-15VDC/9.75W 700mA/2-14VDC/9.8W |
|
| Ripple Current | <3% | |
|
Output |
Channel | 1 |
| Current Tolerance | ±5% | |
| Frequency | 4KHz PWM | |
| No Load Output Voltage | 50V Max | |
| Turn On Delay Time | <1s, at 120Vac | |
|
Protection |
Over Voltage | Hiccup, recovers after fault condition is removed |
| Short Circuit | Shut down the output automatically recovers after faulty condition is removed. | |
| Over Load | When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced. | |
|
Safety & EMC |
Surge | L-N:0.5kV; |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety standards | EN61347-2-13 | |
| EMI Eission | EN55015 | |
| EMC Immunity | EN61000-3-3 EN61000-4-3 EN61000-4-4 EN61000-4-5 | |
|
Function |
Dimming type | TRIAC/ELV |
| Dimming range | 3%-100% | |
|
Others |
Working Temp. | -20°C~50°C(-4°F~122°F) |
| Storage Temp.; Humidity | -40°C~85°C, 20-90%RH | |
| Tc | 90°C (194°F) | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85°C(185°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Pack Information | N.W: 96g(0.21 lb)±5%/PCS; 100PCS/Carton; 10.1kg(22 lb)±5%/Carton; Carton Size: 398x210x208mm(15.6*8.26*8.18 Inch)(L*W*H) | |
| Dimension | 75*35*26.5mm(2.95*1.37*1.04 Inch)(L*W*H) | |
Applications

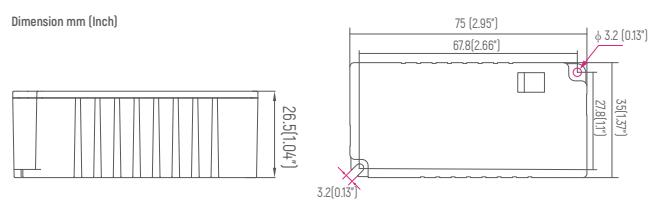

Dimension(mm)

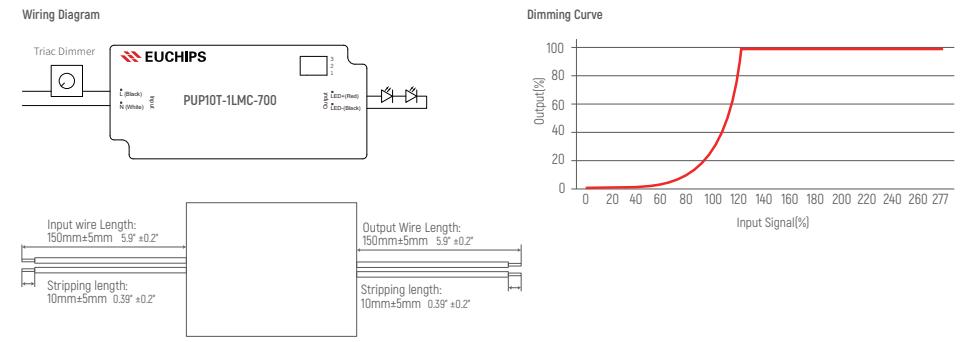

Wring Diagram

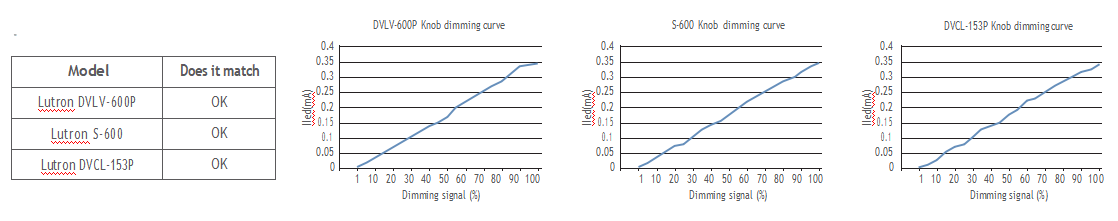

Dimmer MatchingTable
Current Selection Table
PUP10T-1LMC-700 is a multi-current dimming driver, output current level selectable by DIP S.W., as the following:
Remark: Function default setting is: 350mA(@switch are all OFF state)
Type HL Class P Output type-CC Dry and Damp location Class 2 Ground enclosure in installation
For Connections Use Wire Rated for at Least 90 ℃（194°F） Wired control Circuits lsolated, Use only within an enclosure More than one power supply present
Cautions
1.This product should be installed by qualified personnel.
2.This product is non waterproof, need to avoid sun and rain.In case of outdoor use, please ensure it is mounted in a water proof enclosure.
3.Good heat dissipation conditions extend product life.Please install the product in a well-ventilated environment.
4.Please make sure LED power supply output voltage, current is used to meet the product requirements.
5.Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
6.Due to safety concerns, PVC or rubber cord of 0.75-2.5mm² is recommended for input and output terminal(s) (excluding signal terminals). Flat power cord is not suitable.Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
7.In case of malfunction, do not repair it yourself.
※ The contents of this manual are updated without prior notice. If the function of the product you are using is inconsistent with the instructions, the function of the product shall prevail.Please contact us if you have any questions .
