10W 350mA 0-10V CC Driver PUP10A-1WMC-350
Summary
PUP10A-1WMC-350 is a constant current output mode LED driver. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.
Technical Paramaters
| Model | PUP10A-1WMC-350 | |
| Input | Efficiency | 79%@120VAC, Full load |
| Frequency | 50/60Hz | |
| Voltage | 120VAC-277VAC | |
| PF | 0.98@120VAC, Full load | |
| THD(full load) | <10%@120VAC, Full load | |
| Current | 0.12Amax@120VAC | |
| Inrush Current | Cold start,30A@120VAC | |
| Standby Power | <1W | |
| Output | Current/Voltage/Power | 120mA/9-42V/5.04W 180mA/9-42V/7.56W 260mA/9-38V/9.88W 320mA/9-31V/9.92W 150mA/9-42V/6.3W 210mA/9-42V/8.82W 290mA/9-34V/9.86W 350mA/9-28V/9.8W |
| Channel | 1 | |
| No load output voltage | 58V Max | |
| Frequency | 1KHz Min PWM | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | <3% | |
| Protection | Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Close output, recovers automatically after fault removed | |
|
Safety & EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
| Function | Dimming type | 0-10V(Type A) |
| Dimming range | 0.1%-100% Dimming to off | |
| Others | Dimension | 75*35*26.5mm(L*W*H) |
| Pack Information | N.W: 96g(0.21 lb)±5%/PCS; 100PCS/Carton; 10.1kg(22 lb)±5%/Carton; Carton Size: 398x210x208mm(15.6*8.26*8.18 Inch)(L*W*H) | |
| IP rating | IP20 | |
| Working temp. | -20℃~50℃(-4°F~122°F) | |
| tc | 90℃ (194°F) | |
| Relative humidity | 20~90% RH | |
| Lifetime | 50,000h@tc:85℃(185°F) | |
| Material | PC | |
| Switch cycle | >25,000 times | |
Remark: Use only within an enclosure
Applications

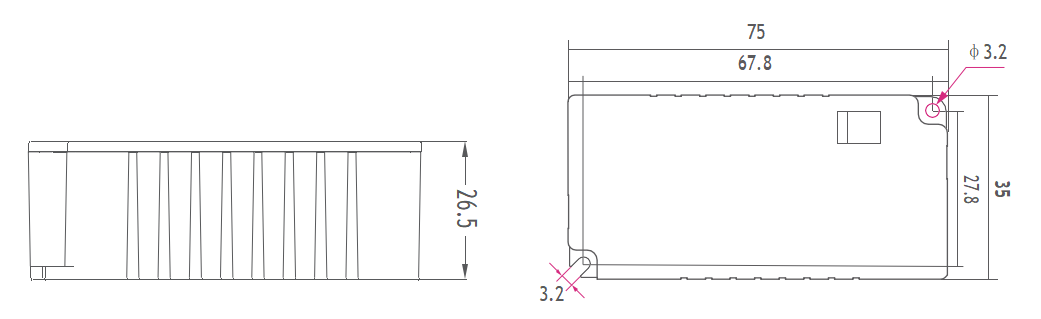

Dimension(mm)

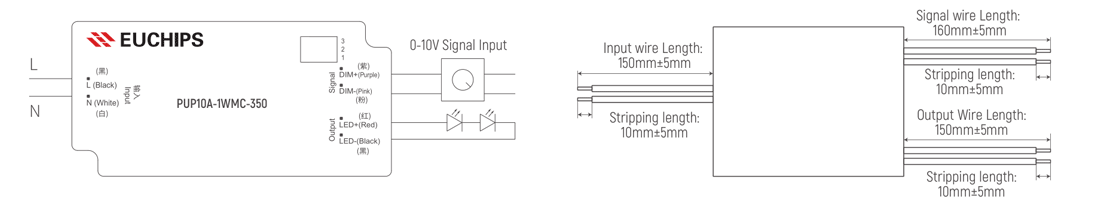

Wring Diagram

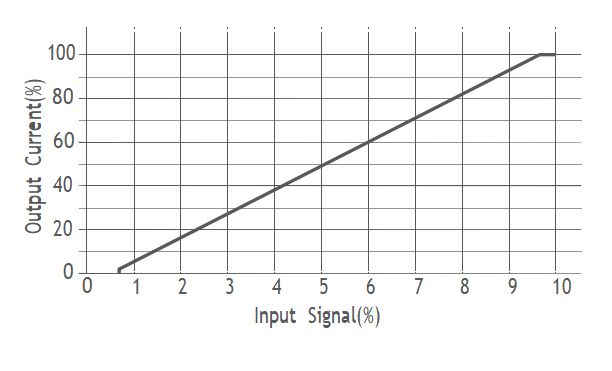

Dimming Curve

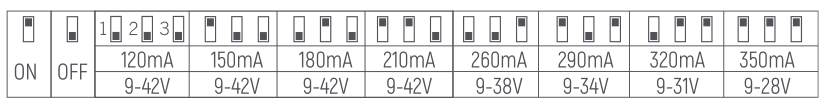

Current Selection Table
PUP10A-1WMC-350 is a multi-current dimming driver, output current level selectable by DIP S.W., as the following:
Remark: Function default setting is:120mA (@switch are all OFF state)
Type HL Class P Output type-CC Dry and Damp location Class 2 Ground enclosure in installation
For Connections Use Wire Rated for at Least 90 ℃（194°F） Wired control Circuits lsolated, Use only within an enclosure More than one power supply present
Cautions
1.This product should be installed by qualified personnel.
2.This product is non waterproof, need to avoid sun and rain.In case of outdoor use, please ensure it is mounted in a water proof enclosure.
3.Good heat dissipation conditions extend product life.Please install the product in a well-ventilated environment.
4.Please make sure LED power supply output voltage, current is used to meet the product requirements.
5.Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
6.Due to safety concerns, PVC or rubber cord of 0.75-2.5mm2 is recommended for input and output terminal(s) (excluding signal terminals). Flat power cord is not suitable.Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
7.In case of malfunction, do not repair it yourself.
