Introduction of 0-10V Dimming

0-10V control is becoming popular again with LEDs because it is an open standard that any manufacturer could meet.

01

However, there are two types of 0-10V and in the lighting industry you must follow the IEC standard in order to operate with existing building controls. This standard states that the control sinks current and the driver sources current.

Two control methods: current sink and current source

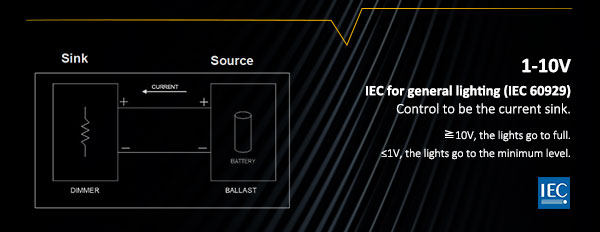

The IEC standard for general lighting requires:

Control to be the current sink

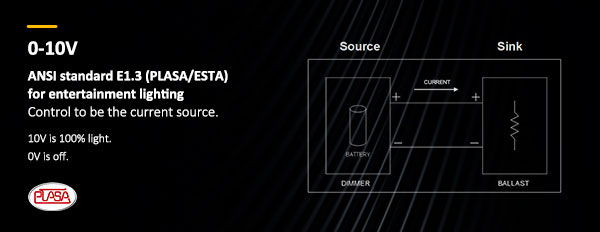

The ANSI standard for theatrical lighting requires:

Control to be the current source

You CANNOT mix controls, ballasts or drivers from these two standards

Meeting the standard will ensure compatibility but not performance

02

03

04

05
