LED lights are a popular solution for different projects due to their versatility and dynamic control over brightness levels. However, choosing the right dimming method for LED lights may be confusing. In this article, we’ll explore different dimming techniques, including their pros and cons, to help you achieve the perfect lighting effects.

Contrary to the common household LED bulbs, like standard A-style bulbs, virtually all LED lights are designed to be dimmable. This versatility allows for precise control over the brightness of the light output, making them suitable for a wide range of applications. If you really don’t know whether they are dimmable or not, one of the easiest ways is to read the product description carefully. Below, we’ll dive into a complete guide to help you how to dim your LED lights. Please follow us.

1. Why do we need a method to dim our LEDs?

Yes, of course. There are several reasons:

1.1. Energy Efficiency

Dimming LEDs can contribute to energy conservation and cost savings by reducing the brightness of lights when full illumination is not required. This is particularly beneficial in commercial spaces where lighting needs may vary throughout the day.

1.2. Comfort and Health

Dimming allows us to adjust the brightness of LED lights to create different atmospheres and moods in various settings for individual preferences and promote visual comfort, such as homes, offices, restaurants, or entertainment venues. For example, dimming can create a cozy and relaxing ambiance for a romantic dinner or provide subtle lighting for movie nights.

1.3. Extended Lifespan

Dimming LEDs can help extend their lifespan by reducing the stress on components like LEDs and drivers. Operating LEDs at lower brightness levels can decrease heat generation, potentially minimizing thermal stress and prolonging the overall longevity of the lighting system.

1.4. Customization and Flexibility

Different activities or occasions may require varying levels of illumination. Dimming provides flexibility, allowing users to customize lighting according to specific needs or preferences. This can be useful in retail stores, museums, or other spaces where lighting is used to enhance the overall experience or atmosphere.

Overall, having a method to dim LEDs enhances user experience, promotes energy efficiency, and provides flexibility in lighting design, making it an essential feature for modern lighting systems.

2. What factors should be considered before choosing a dimming method?

2.1. Project Requirements

Think about the nature of your project and the lighting effects you want to achieve. Are you looking for simple on/off control, or do you need precise dimming capabilities for creating different moods or atmospheres?

Consider the brightness levels you require. Some dimming methods may offer a wider range of brightness adjustments than others.

2.2. Installation Environment

Thoroughly evaluate the environment where the LED lights are intended to be installed. Vital factors, including whether the installation is indoors or outdoors, the ambient lighting conditions, and any potential wiring constraints, can all have a significant impact on your choice of dimming method.

2.3. Cost and Budget

Consider your budget and the overall cost of the dimming system, including any additional equipment or controllers you may need, and any potential maintenance or operating expenses.

Some dimming methods may be more cost-effective than others, but they may also have limitations in terms of functionality or compatibility.

2.4. Compatibility and Integration

Ensure that the dimming method you choose is compatible with your LED lights and any existing lighting control systems you have. Verify compatibility before making a purchasing to avoid compatibility issues or performance issues.

Consider the ease of integration and installation. Some dimming systems may require more complex wiring or setup procedures than others.

2.5. Control Preferences

Consider your preferences for controlling the LED lights. Do you prefer manual control via traditional wall dimmers or remote control options like RF or WiFi dimming, or automated control options? Are you looking to integrate the dimming system with smart home automation for added convenience?

2.6. Future Expansion

Your anticipated lighting requirements should be taken into account and whether the dimming system needs to incorporate additional LED lights or integrate further control features in the future. Choose a dimming method that can easily accommodate future growth or modifications.

2.7. Reliability and Durability

Consider the reliability and durability of the dimming system. Look for products from reputable brands with good reviews and a proven track record of performance.

Above all, it’s important to consider factors such as cost, control precision, and the specific requirements of your project. There is also a good way to consult with a lighting expert or a salesperson before making a decision. They can provide personalized advice based on your specific requirements and help you choose the best solution for your LED lights.

3. How to choose the dimming method for LED lights?

Choosing the appropriate dimming method for LED lights is crucial for achieving desired lighting effects, energy efficiency, and system scalability. The most commonly used dimming methods in professional LED lighting are DALI, 0/1-10V, Phase-cut, and DMX. Please follow us to understand which dimming method should you use best for you.

3.1. Phase-cut dimming

Phase-cut dimming is a popular method for dimming lights that doesn’t typically require rewiring of the lights. It’s commonly used in residential and commercial settings where the existing wiring infrastructure can be utilized for dimming purposes without the need for major renovations.

There are two types of technology about phase-cut dimming: leading-edge dimming and trailing edge dimming.

Leading-edge dimming, also known as forward phase control (FPC) dimming, operates by chopping the input voltage at the beginning of each AC phase cycle using a thyristor circuit. By adjusting the conduction angle of each half-wave of the alternating current, the effective voltage is altered, which in turn dims the light output. This method effectively modifies the shape of the AC waveform, allowing for dimming control without requiring rewiring of the lamp. It’s commonly used in dimmer switches for incandescent and some types of LED lights.

The advantage of phase-cut dimming:

No extra wiring: Don’t typically require rewiring of the lights.

Good for retrofit: Compatible with existing dimmer switches and infrastructure in many residential and commercial buildings.

Cost-effective: Relatively low cost and simple installation

The disadvantage of phase-cut dimming:

Compatibility issue: Phase-cut dimming systems can sometimes cause compatibility issues with certain LED lights, leading to flickering or compatibility problems.

Inrush current: Start-up inrush and repetitive current increase stress on control.

No smooth dimming: Phase-cut dimming methods, especially leading-edge dimming, have the potential for less smooth dimming compared to other techniques. Because phase-cut dimming operates by chopping off a portion of the AC waveform, it can result in abrupt changes in brightness levels, especially at lower dimming settings.

Outdoor and facade: Phase-cut dimming is not good for outdoor and facade lighting, which can’t withstand harsh environmental conditions.

3.2. 0-10V dimming

In a 0-10V dimming system, the control signal varies between 0 and 10 volts to adjust the brightness of the connected light fixture. This analog dimming approach allows for precise control over light levels and can achieve smooth dimming transitions, making it well-suited for applications where gradual changes in brightness are desired, such as in indoor and outdoor lighting setups.

The advantage of 0-10V dimming:

Good compatibility: Compatible with many existing control systems and LED drivers.

Cost-effective: Relatively low cost compared to digital dimming protocols.

The disadvantage of 0-10V dimming:

Analog: Limited dimming range and precision compared to digital methods.

Extra wiring: This may require additional wiring for control signal transmission.

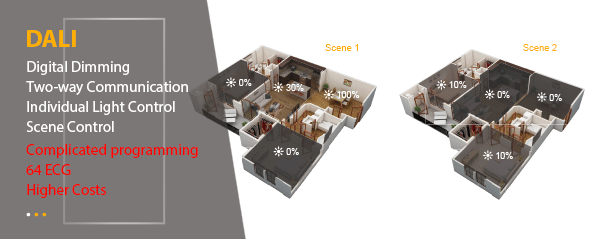

3.3. DALI dimming

DALI offers a highly flexible and intelligent lighting control system. It allows individual addressing and control of each LED light, enabling precise dimming, color tuning, scene setting, and group control. DALI is also suitable for larger systems as it can integrate with building automation systems for centralized control.

The advantage of DALI dimming:

Digital dimming: Each lighting fixture, or DALI device, has a unique address. This address allows controllers to communicate with and control individual fixtures in a DALI network.

Two-way communication: DALI enables two-way communication, meaning that not only can controllers send commands to dim or switch fixtures on and off, but fixtures can also send feedback and status information back to the controller. This allows for features such as status monitoring, fault detection, and energy reporting.

Individual lighting control: Individual control of each fixture allows for precise lighting adjustments.

Scene control: Allow users to create and recall predefined lighting scenes with the touch of a button or through automated scheduling.

The disadvantage of DALI dimming

Complicated programming: Complex installation and programming may require trained professionals.

64 ECG: Require DALI-compatible LED drivers and controllers, Up to 64 DALI devices can be connected to the DALI output of the gateway.

Higher costs: Involve higher initial costs due to the need for special controllers and wiring.

3.4. DMX512 dimming

DMX512 (Digital Multiplex) is a popular dimming protocol, widely used in theatrical, stage, and architectural lighting applications. It offers high-speed, precise control of LED lights, enabling complex lighting sequences, dynamic scenes and synchronization with other lighting equipment.

The advantage of DMX512 dimming:

Fast communication: Provide fast and efficient communication for dimming and controlling lighting fixtures, making it well-suited for applications where rapid updates and precise synchronization of lighting effects are critical.

512channel: A DMX universe is a single data stream containing up to 512 channels of control information.

RGBW control: Offer versatile and flexible lighting options for a wide range of applications, and users can achieve precise control over color and intensity to create captivating lighting experiences.

The disadvantage of DMX512 dimming:

Professional setup: Complex installation and programming may require expertise.

Complicated programming: Require specialized DMX controllers and compatible LED drivers or fixtures.

4. Summary

Each dimming method offers unique advantages and disadvantages, ensuring that the chosen solution aligns with the specific needs of the project or application. There are some suggestions for you as reference.

Phase-Cutting Dimming for Retrofitting Old Projects: Thyristor-based phase-cutting dimming, while simple and cost-effective, requires compatible dimming drivers/controllers. This method is suitable for projects where wiring constraints or budget considerations are key limited factors.

DALI and 0-10V Dimming for New Projects or Specific Requirements: DALI and 0/1-10V dimming are preferred for new projects or those with specific dimming needs. Both offer excellent dimming performance, with DALI providing individual lamp control and 0/1-10V offering loop control. DALI tends to have a higher cost compared to 0/1-10V but provides more advanced features and flexibility.

DMX Control for Facade Lighting and RGB/RGBW Applications: DMX control is recommended for projects requiring precise control over color lighting, such as facade lighting and venues like bars and KTVs. DMX allows for dynamic color displays and is widely used in applications where RGB or RGBW lighting effects are essential.

In conclusion, understanding the different dimming methods available for LED lights allows you to choose the most suitable option based on your specific requirements and preferences. Whether you prioritize simplicity, precision, control functionality, or compatibility with lihting systems, there is always a dimming solution to meet your needs. By considering the pros and cons of each method, you can achieve the perfect lighting effects for your project.
