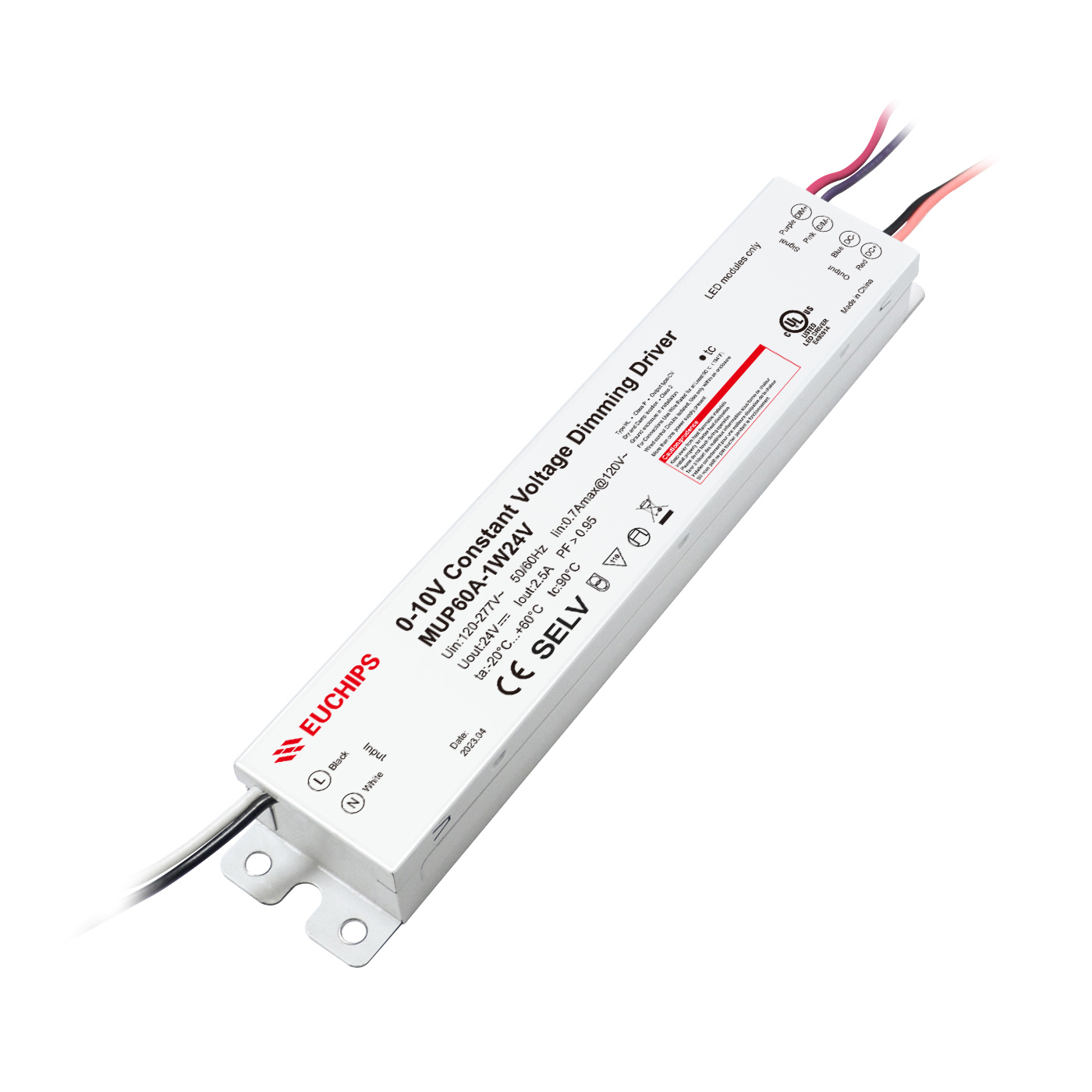

60W 24VDC 0-10V CV Driver MUP60A-1W24V
Summary
MUP60A-1W24V is a constant voltage mode output LED driver. This driver can be controlled by external signal (0-10V active signal, adjustable resistance and PWM signal) to achieve a smooth dimming effect.
Technical Paramaters
|
Model |
MUP60A-1W24V | |
|
Input |
Efficiency | 88%@120VAC, Full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Power Factor | >0.99@120VAC, Full load | |
| Current | 0.7Amax@120VAC, Full load | |
| Inrush Current | Cold start, 45A@120VAC | |
| Standby power | < 2.5W | |
|
Output |
Channel | 1 |
| Voltage | 24VDC | |
| Current | 2.5A | |
| Power | 60W | |
| Frequency | 1kHz PWM | |
| R & N (Max) | <600mV Vp-p | |
| Turn On Delay Time | <0.5s from power on to Iout>0 @120Vac | |
| Function | Dimming type | 0-10V active signal, adjustable resistance and PWM signal |
| Dimming range | 1%-100% | |
| Protection | Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Hiccup, recovers after fault condition is removed | |
| Over temperature | Shut down and auto-restart after normal temperature | |
|
Safety & EMC |
Surge | L-N:2.5KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA I/P-Gnd: 1500VAC/1min/5mA O/P-Gnd: 500VAC/1min/5mA | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
|
Others |
Working Temp. | 20℃~60℃ (-4°F~140°F) |
| Storage Temp.; Humidity | -40℃~85℃ (-40°F-185°F), 20-90%RH | |
| Tc | 90℃ (194°F) | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 700g(1.54 lb)±5%/PCS; 20PCS/Carton; 14.5kg(32 lb)±5%/Carton; Carton Size: 300*268*168mm (11.81*10.55*6.61 Inch) (L*W*H) | |
| Dimension | 243*45*30mm | |
Applications
Dimension(mm)

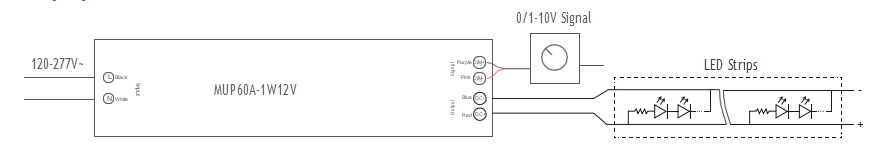

Wiring Diagram

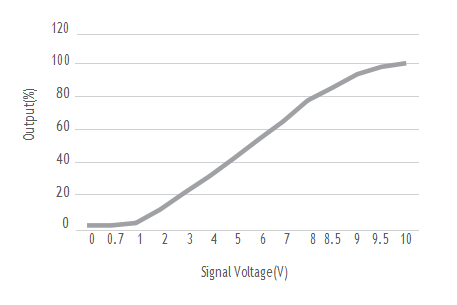

Dimming Curve
Cautions
1.The product shall be installed and serviced by aqualified person.
2.This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure.
3.Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
4.Please check if the output voltage and current of any LED power supplies used comply with the requirement of the product.
5.Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
6.For safety consideration, PVC or rubber cord of 0.75-1.5mm2 is recommended for input and output terminal(s) (excluding signal terminals). Flat power cord is not suitable.Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
7.If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
※ The contents of this manual are updated without prior notice. If the function of the product you are using is inconsistent with the instructions, the function of the product shall prevail.Please contact us if you have any questions .
