75W 2ch 24VDC DMX CV Driver LCP75M-2W24V
Summary
LCP75M-2W24V is a constant voltage mode output LED driver, adjustment of brightness and colour temperature.
Technical Paramaters
| Model | LCP75M-2W24V | |
|
Input |
Efficiency | 92%@230VAC,Full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.98@230VAC,Full load | |
| THD(full load) | 10%@230VAC, Full load | |
| AC Current(max) | 0.39Amax@230VAC | |
| Inrush Current(max) | Cold start,40A@230VAC | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 3.125A/24VDC/75W |
| Channel | 2 | |
| Voltage Tolerance | ±3% | |
| Standby power | <0.5W | |
| No load output voltage | 24VDC±3% | |
| Turn on delay Time | <0.5s, at230Vac (When the light begins to shine) | |
|
Function |
Dimming Type | DMX |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Over load | Hiccup, recovers after fault condition is removed |
| Short Circuit | Hiccup, recovers after fault condition is removed | |
|
Safety&EMC |
Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety standards |
EN61347, GB19510 ℃ ℃ |
|
|
Others |
Working Temp. | -20 ~50
℃ ℃, |
| Storage Temp., Humidity | -40 ~85 20-90%RH
℃ |
|
| tc | 75 | |
| Material | PC | |
| IP Rating | IP20
℃ |
|
| Lifetime | 50,000h@tc:75 | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 340g±5%/PCS; 50PCS/Carton;17.5kg±5%/Carton; Carton Size: 434*302*174mm(L*W*H) | |
| Dimension | 295*40*32mm（L*W*H） | |

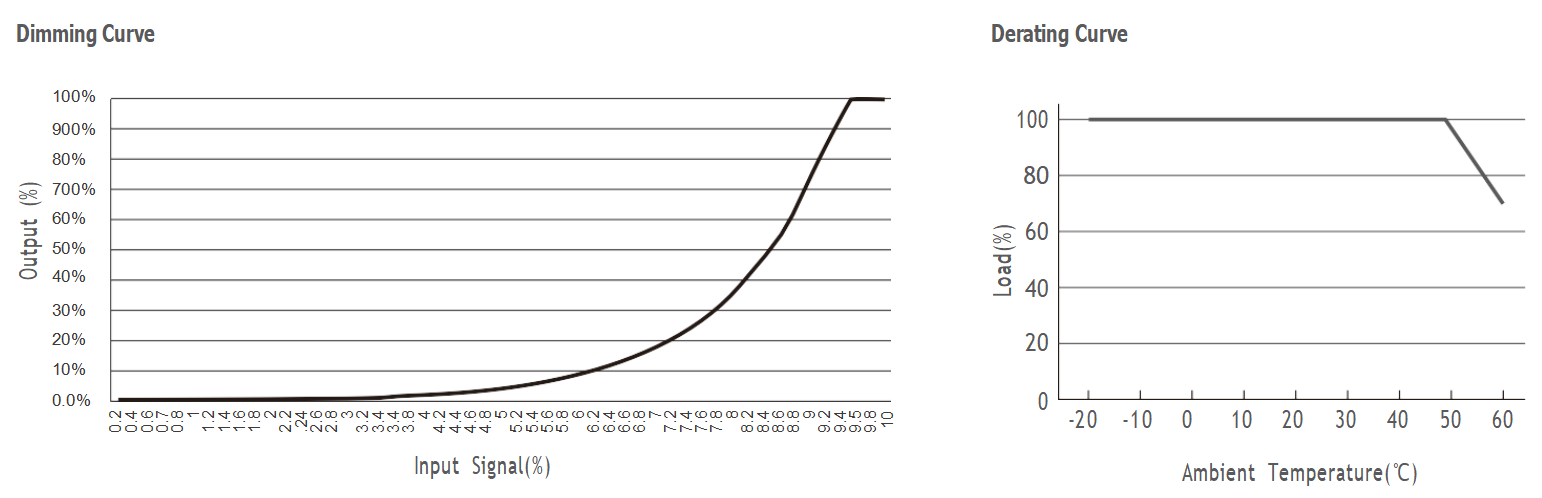

Application

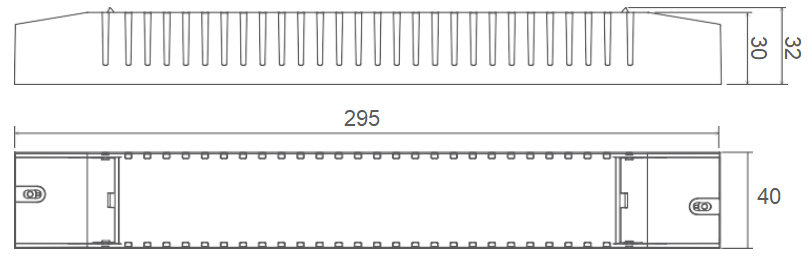

Dimension(mm)

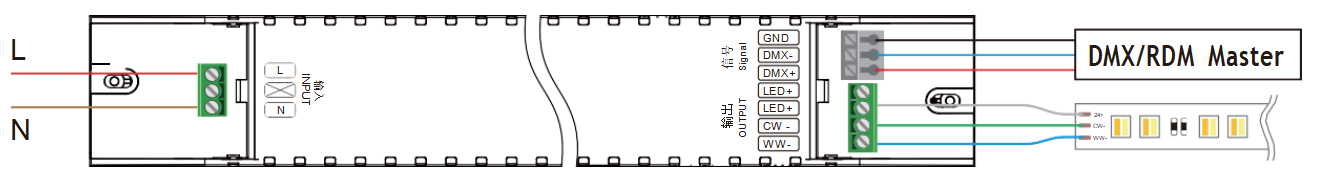

Wiring
Cautions
1.This product should be installed by qualified personnel.
2.This product is non waterproof, need to avoid sun and rain.In case of outdoor use, please ensure it is mounted in a water proof enclosure. 3.Good heat dissipation conditions extend product life. Please install the product in a well-ventilated environment.
4.Please make sure LED power supply output voltage, current is used to meet the product requirements.
5.Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
6.Due to safety concerns, PVC or rubber cord of 0.75- 1.5mm² is recommended for input and output terminal(s)(excluding signal terminals). Flat power cord is not suitable.Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
7.In case of malfunction, do not repair it yourself.
※ The contents of this manual are updated without prior notice. If the function of the product you are using is inconsistent with the instructions, the function of the product shall prevail.Please contact us if you have any questions .
