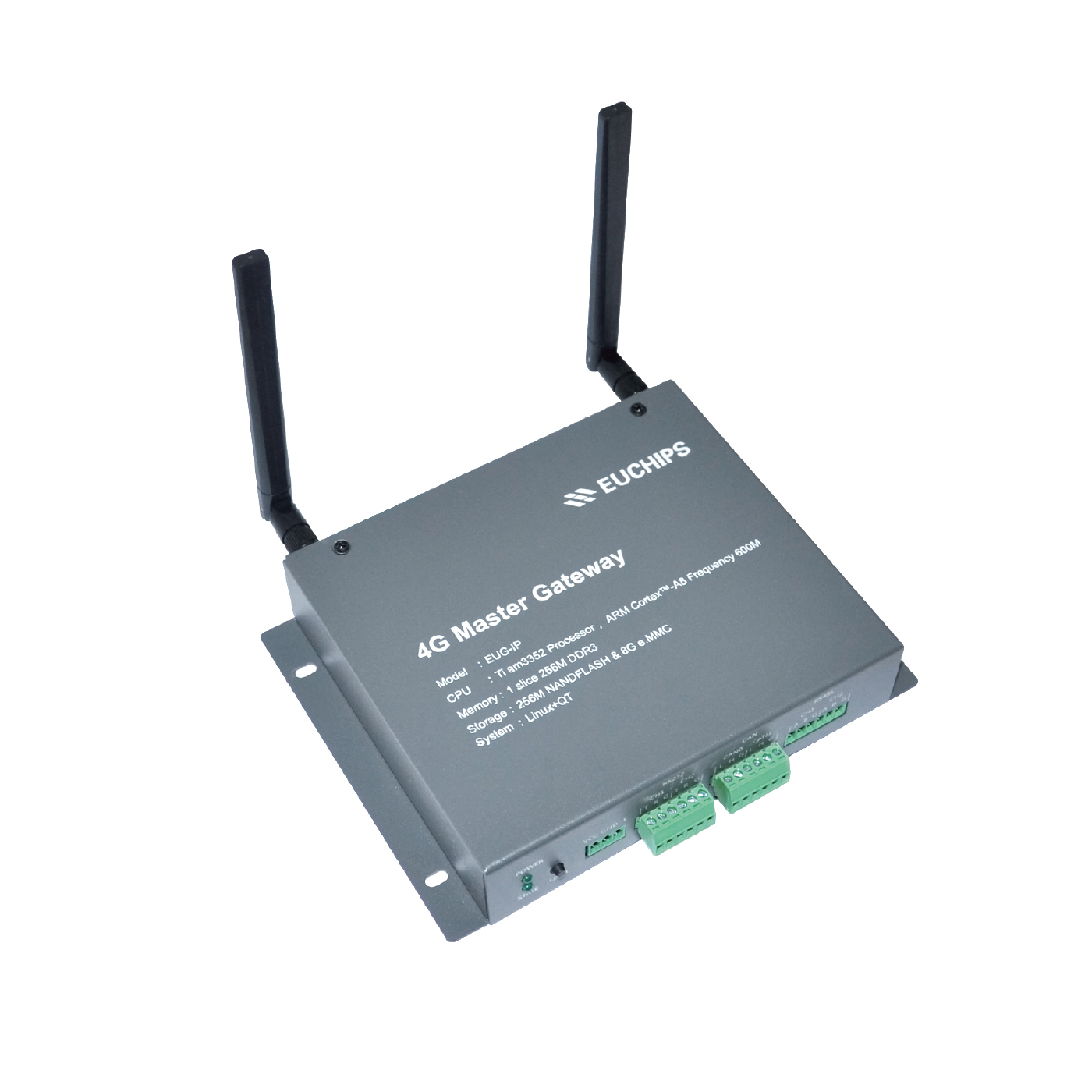

4G Master Gateway EUG-IP

Short Description:

Eug – IP is a network controller with high performance and low energy consumption introduced by Euchips.

Built – in 335 x series industrial control boards have added network isolation,can bus isolation and 485 isolation.

Integrated with various peripheral interfaces, it can control a variety of Euchips dimming devices through EU-Bus protocol.


Product Detail

Product Tags

Product performance

Plate performance
module Characteristics
CPU TI AM 3352 Processor, ARM Cortex - A8 600 m Main Frequency
Memory 1 piece 256 m DDR 3
Storage 256M NANDFLASH or 8G eMMC
Operaing system Linux
Front panel
module Characte -ristics
Indicator light 1 power lamp,1 user-definedLED

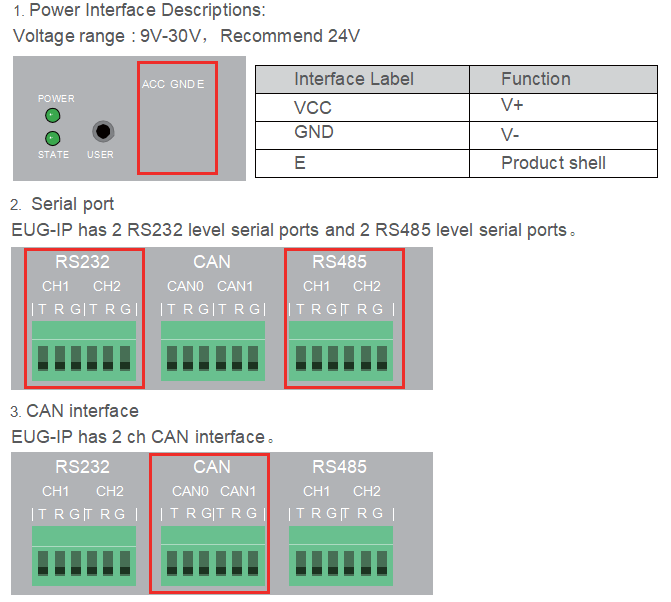

Power Voltage range 9-30V,Recommend24V
2CH RS232 Channel Device node Description
CH1 tty01 UART1
CH2 tty02 UART2


2CH RS485

Channel Device node Description
CH1 tty03 UART1Add 485 isolated protection
CH2 tty04 UART2Add 485 isolated protection
2CH RS485 Channel Device node Description
CH1 tty1 Add CAN isolated protection
CH2 tty0

Back panel

Module Charactericstics
Debugging seriel port DEBUG(Device node tty00)

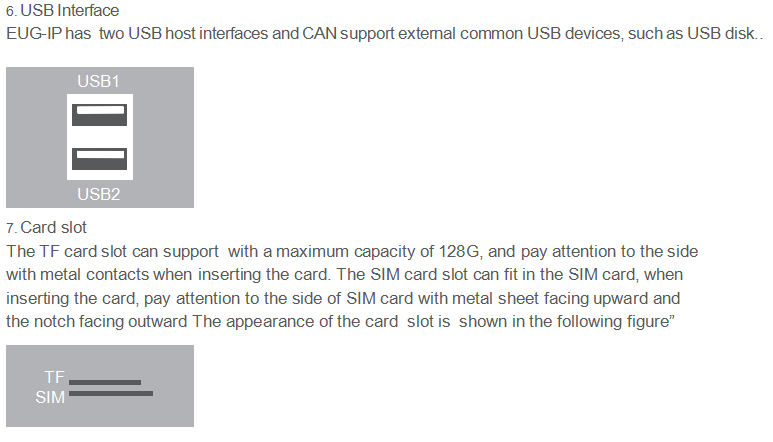

2CH USB Host For normal usd storage and communication

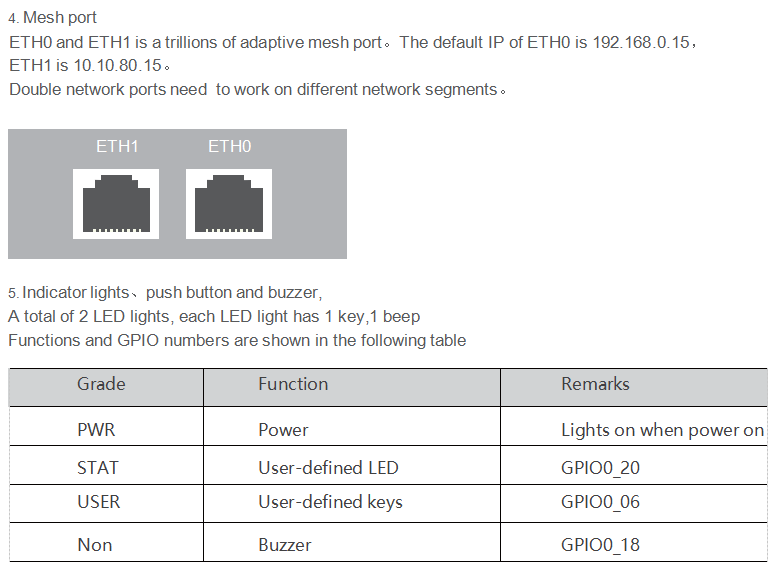

2CH100M Adaptive mesh port

Channel
ETH1( IP 10.10.80.15 )
ETH0( IP 192.168.0.15 )
TF card interface TF Card start write and storage ( 128G Capacity tested )
WIFI aerial head Wireless Network Card ( Optional)
4G aerial head 4G Module ( Optional )
SIM card slot Used with 4g
GPS module 4g module with GPS function( Optional )

Interface details

3
4
5

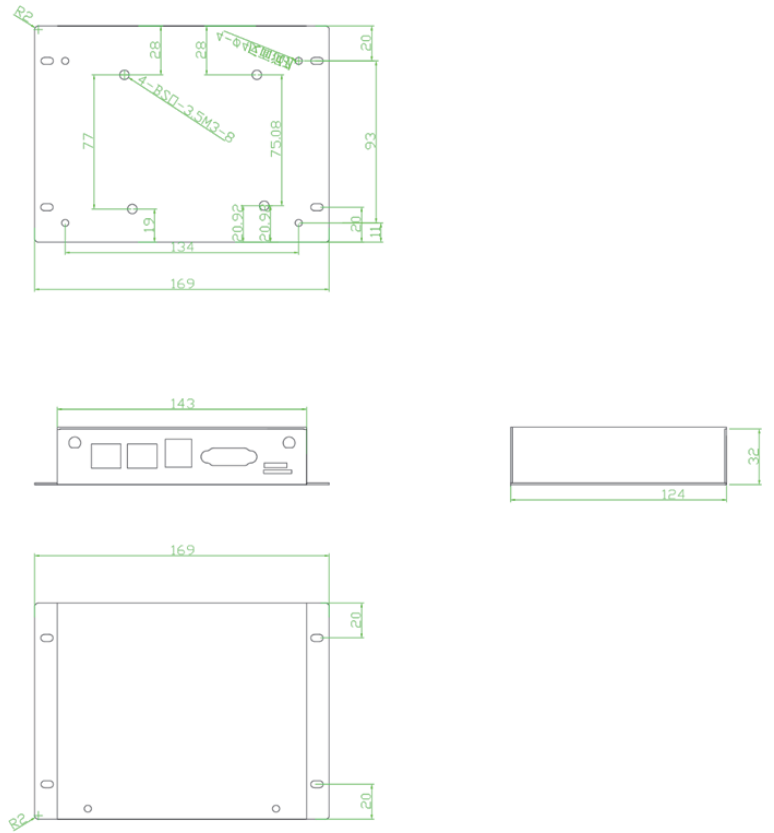

Specifications size

6
