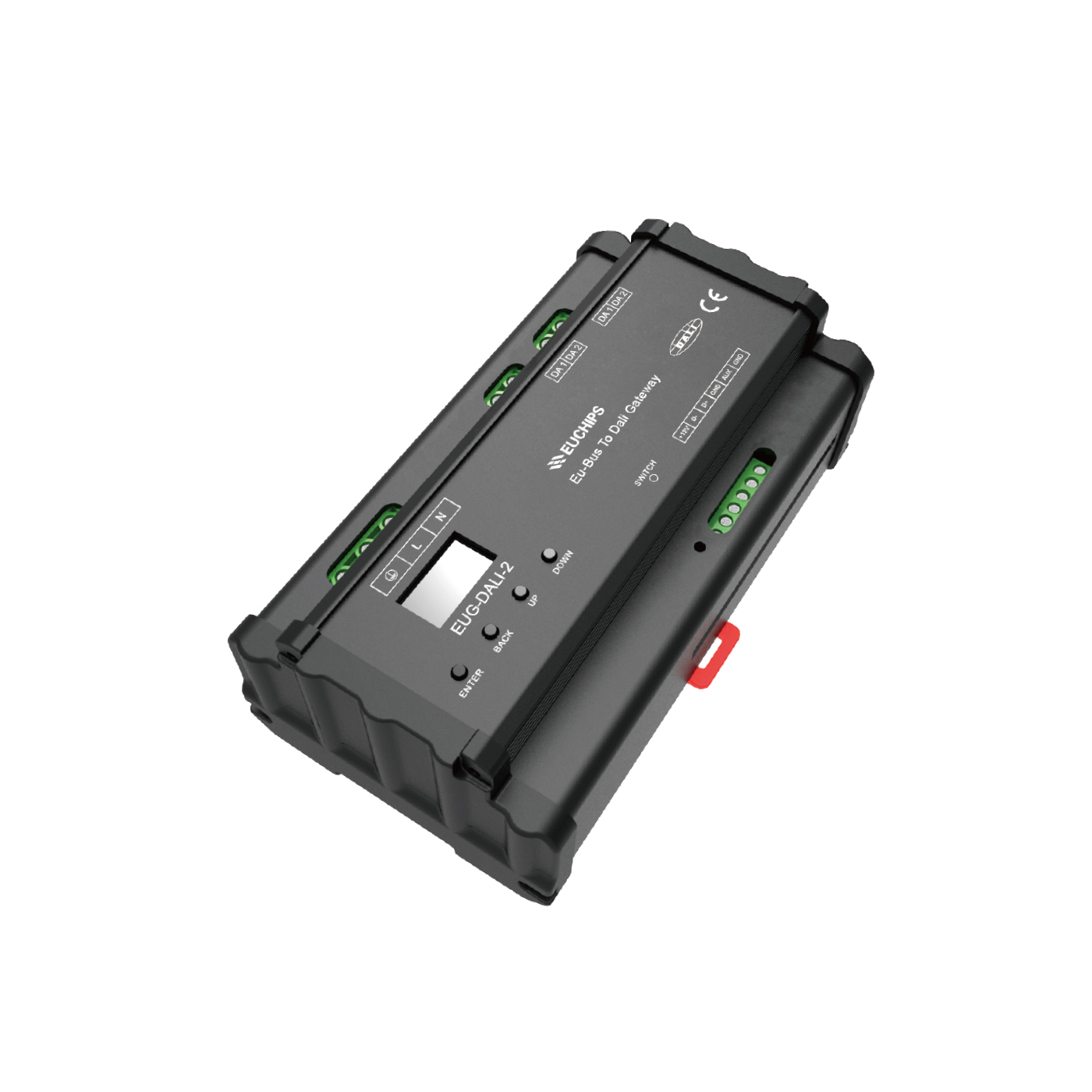

EU-BUS To DALI Gateway EUG-DALI-2
Summary
In the EU-BUS system, the user can control the equipment complying with DALI standard protocol via EUG-DALI gateway. The user can assign（including reassign, extent allocation） the address for DALI equipment, and ,can setgroup, scene, the switch-on brightness, the minimum brightness, the maximum brightness, fadetime. In addition, the user can know the state of DALI equipment via PC software or information set in advance.
Technical Parameters
| Item | Parameters |
| Input voltage | 220V |
| Communication protocol | EU-BUS |
| The number of DALI equipment | 2*64 |
| The number of dry contact | 1 |
| Equipment size | 167*96.5*65.4mm(L*W*H),standard 35mm din rail |
| G.W. | 380g |
| Operational temperature | -20-50℃ |
| Relative humidity | 20-90%RH |

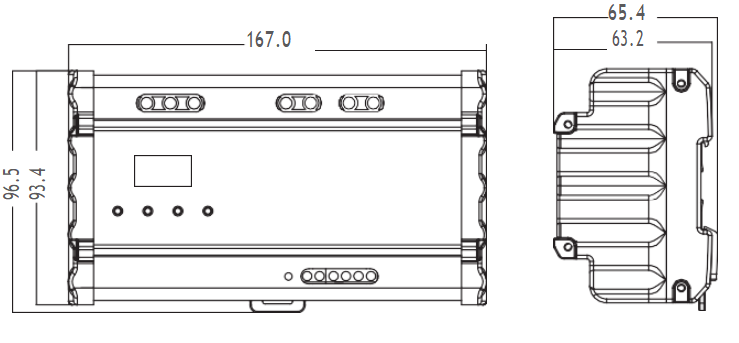

Equipment size(mm)

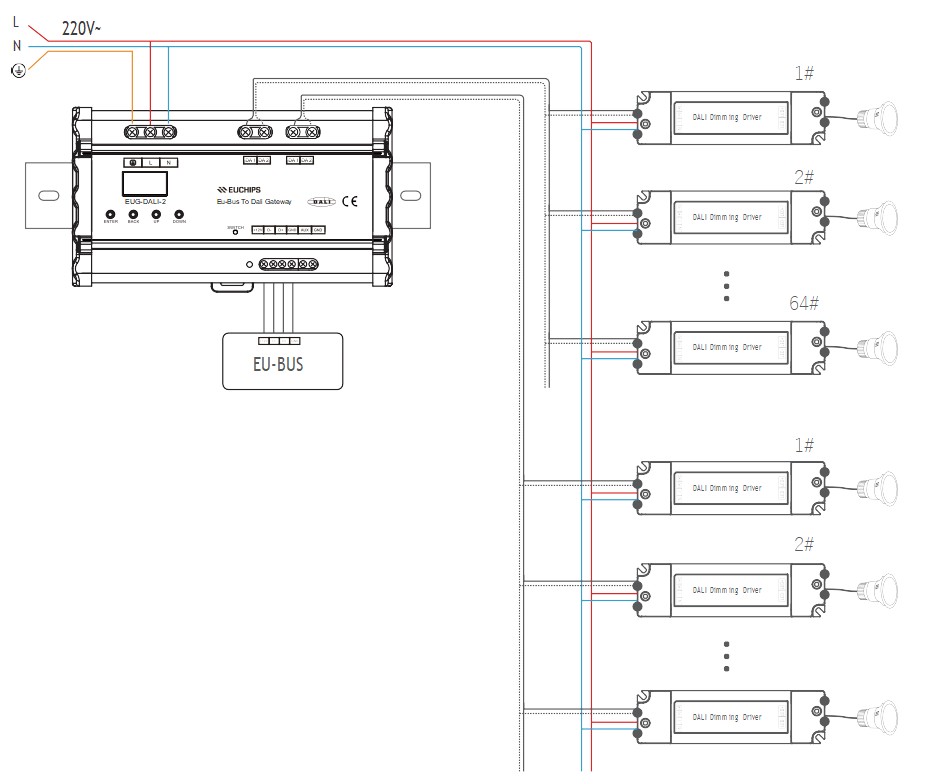

Wiring Diagram
※ The contents of this manual are updated without prior notice.
If the function of the product you are using is inconsistent with the instructions, the function of the product shall prevail. Please contact us if you have any questions .
