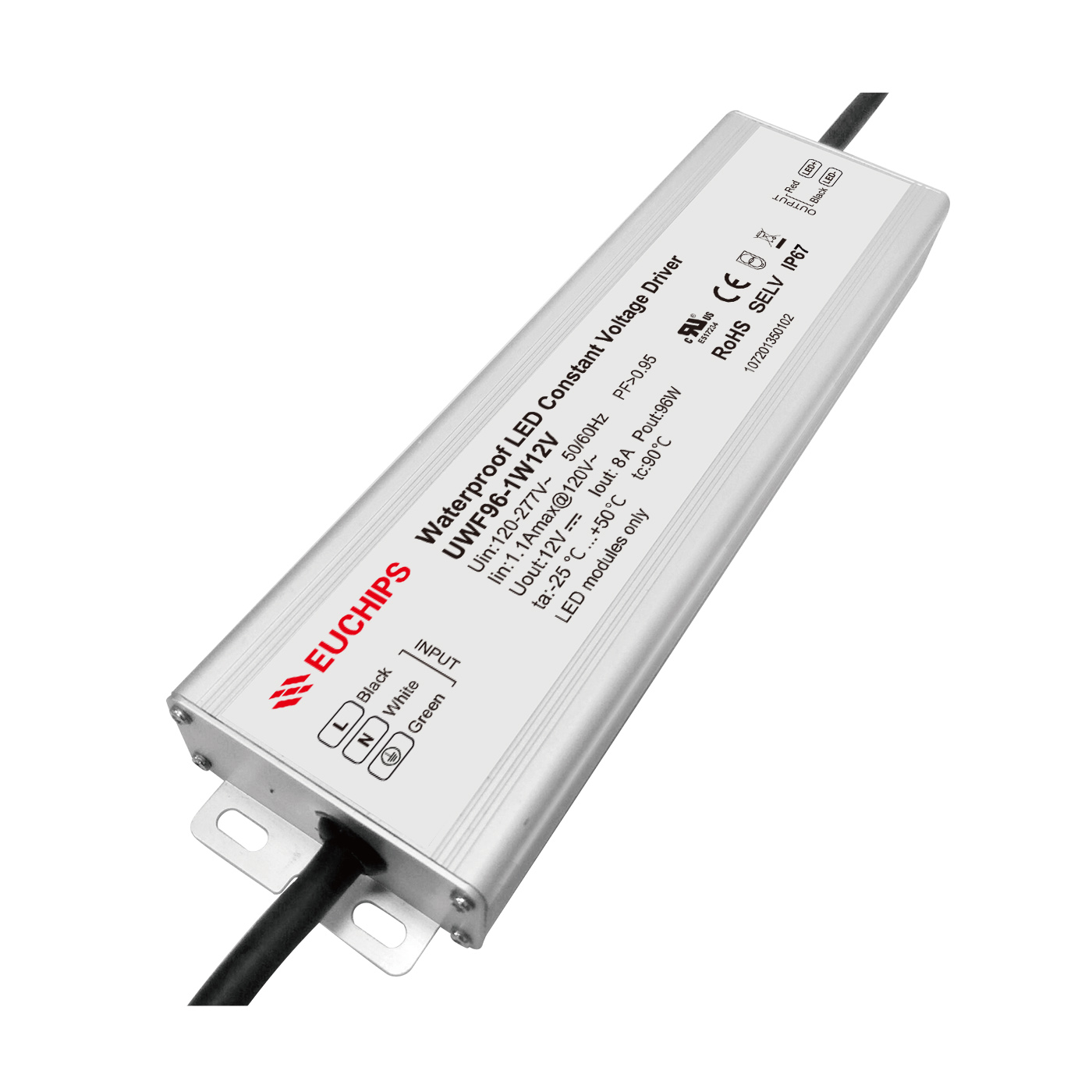

96W 12VDC Non-dimmable CV Driver UWF96-1W12V

Short Description:

·Width voltage input,full power output

·Design of metal shell, improving heat dissipation performance

·Isolated design,safe and reliable

·Protections:Over load,Short circuit,over voltage

·Comply with CE/UL/SELV

·Protection grades is as high as IP67

·5 years warranty


  • :
  • Product Detail

    Product Tags

    96W 12VDC Non-dimmable Constant Voltage Driver UWF96-1W12V

    Technical Parameters

    Model UWF96-1W12V
    Input Efficiency 86%@230VAC, Full load
    Voltage 120VAC-277VAC
    Frequency 50~60Hz
    Power Factor >0.95@230VAC, Full load
    Standby power <0.5W
    Current 1.1Amax@120VAC
    Inrush Current Cold start 50A@230VAC
    Output Current/Voltage/Power 8A/12VDC/96W
    Voltage Tolerance ±4%
    Channel 1
    Start Delay <2s, at 230Vac
    Protection Short Circuit Auto recovery when failure is removed.
    Over Voltage <18VDC Shut down the output, After restart recovers automatically.
    Over Load <10.8A auto recovery when failure is removed.
    Safety Surge L-N: 2kV
    Withstand Voltage I/P-O/P:3000VAC/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA
    Safety Standards UL8750(type”HL”),CSA C22.2 No.250.13-12 ; EAC TC004,UL60950-1,TUV EN60350-1; ,J61347-1,J613447-2-13 GB19510.1,GB19510.14,UL879
    Others Working Temp. -25℃~+50℃ (-13°F~122°F)
    Storage Temp.; Humidity -40℃~85℃ (-40°F~185°F) , 20-90%RH
    Tc 90℃ (194°F)
    Material Metal
    IP Rating IP67
    Lifetime 50,000h@tc:85℃ (185°F)
    Warranty Condition 5 years
    Switch Cycle >25,000 times
    Packing Size Net weight: 650g (1.43 lb) ±5%/PCS; 30PCS/Carton; 20kg (44.1 lb) ±5%/Carton; Carton Size: 300*256*296mm (11.8*10.1*11.65 Inch) (L*W*H)
    Dimension 220*61*25mm (8.67*2.4*0.98 Inch) (L*W*H)
