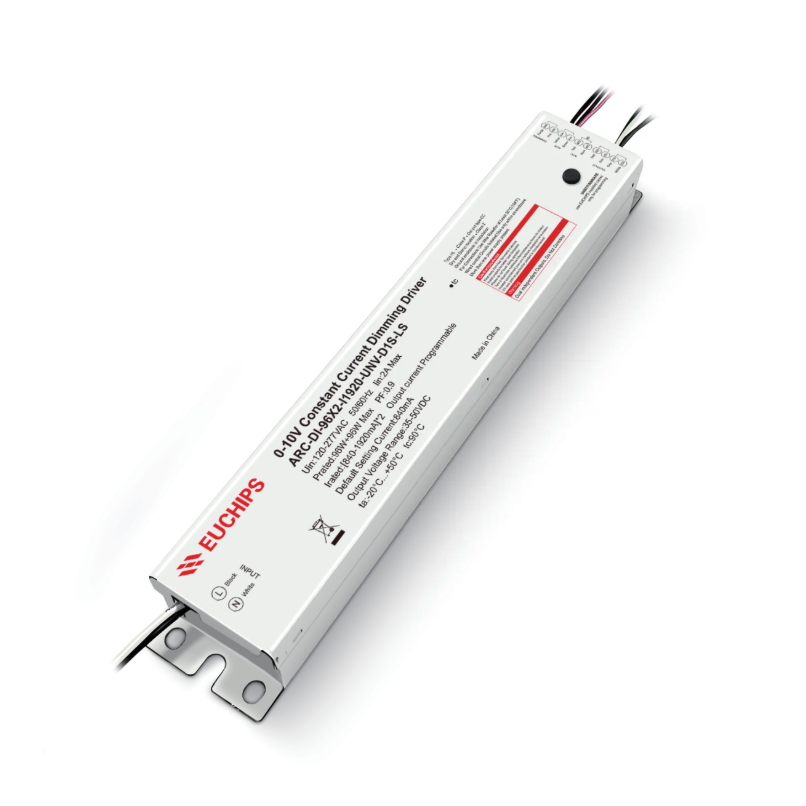

96 W 0-10V Driver ARC-DI-96X2-I1920-UNV-D1S-LS
Features
·Universal AC Input Voltage(120-277VAC)
·Metal sheet case ·One isolated 0-10V dimming interface
·Flicker free, excellent camera compatibility
·Dual Output, Class2, Class P
·Operating temperature: -20℃~+50℃ ·Comply with IEEE1789, UL8750
·Programmable Output current(1mA step) Dim to off
·Aux power, 12V/200mA
·ANSI C62.41 Category B 6kV
Model list
|
Model NO. |
Rated Input Voltage |
Max Output power |
Default Output Current |
Output Current Range |
Output Voltage Rated |
Aux Power |
|
ARC-DI-96X2-I1920-UNV-D1S-LS |
120-277Vac |
96W+96W max. |
840mA*2 |
(840-1920mA)*2 |
35-50VDC |
12V |
Paramaters
|
INPUT |
Parameter |
Min |
Typ. |
Max |
Note |
| Input Voltage |
120Vac |
- |
277Vac |
- | |
| Input Voltage range |
108Vac |
- |
305Vac |
- | |
| Rated Frequency |
47Hz |
50/60Hz |
63Hz |
- | |
| Input current |
- |
- |
2A |
@120Vac full load | |
| Inrush current |
- |
- |
25A |
120Vac, cold start (25℃) | |
| Power Factor |
>0.95 |
- |
- |
@120Vac 100% load | |
|
>0.9 |
- |
- |
@277Vac 100% load | ||
| T.H.D. |
- |
<10% |
@120Vac 100% load | ||
|
- |
<15% |
@277Vac 100% load | |||
| Efficiency |
- |
86-88% |
- |
@120Vac Vout=50V, Iout=1920mA, steady state | |
|
- |
88-90% |
- |
@277Vac Vout=50V, Iout=1920mA, steady state | ||
| Turn On Delay Time |
- |
- |
0.75S |
Cold Start, @120VAC |
