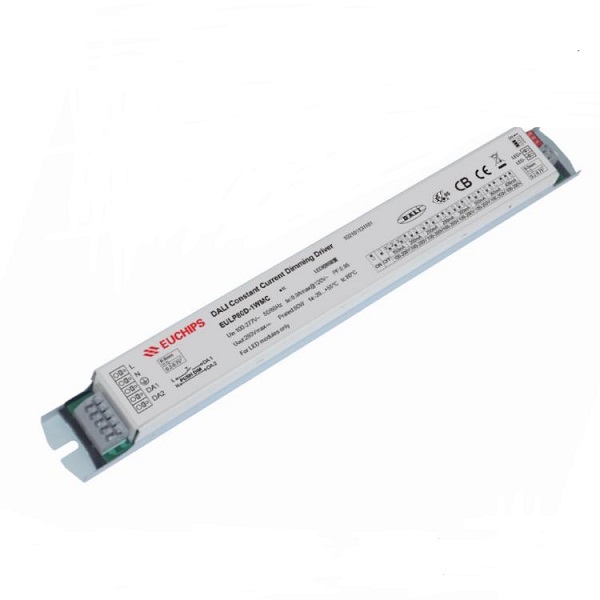

80W 150-400mA DALI CC Driver EULP80D-1WMC
Summary
EULP80D-1WMC is an 80W AC to DC LED driver that can output multiple current levels. The output current can be selected by switching. Non-isolated products, connected to DALI master or Touch DIM for smooth dimming effect.
Product Features
·Single channel constant current output, multi-level current optional
·Wide voltage input: 100VAC~277VAC
·Efficiency up to 93%
·Conforms to DALI-2 protocol standards
·Protection: short circuit, overvoltage
·Suitable for LED indoor lamps
Technical Paramaters
|
Model |
EULP80D-1WMC | |
|
Input |
Efficiency | ≥90%@120VAC，≥93%@277VAC, Full load |
| Voltage | 100VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.98@120VAC , 0.9@277VAC Full load | |
| THD | 10%@120VAC , 15%@277VAC Full load | |
| AC Current | 0.9Amax@120VAC , 0.4Amax@277VAC | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start , 17A@120VAC 250us 20A@277VAC 500us | |
|
Output |
Current/Voltage/Power | 150mA/100-200VDC/30W 250mA/100-200VDC/50W300mA/100-200VDC/60W 365mA/100-200VDC/73W
200mA/100-200VDC/40W 280mA/100-200VDC/54W 350mA/100-200VDC/70W 400mA/100-200VDC/80W |
| Channel | 1 | |
| Current Tolerance | ±5% (150mA ±7%, 200mA ±7%) | |
| No load output voltage | 280V | |
| Turn on delay Time | ≤1 s, @120VAC @277VAC (When the light begins to shine) | |
| Function | Dimming Type | DALI, Touch DIM |
| Dimming Range | 0.5%-100% | |
| Dimming curve | Logarithm | |
| Protection | Short circuit | No output and self-recovery after removal |
| Over Voltage | If no output is generated, power off and restart the device to rectify the fault | |
|
Safety & EMC |
Surge | L-N:1kV L/N-PE:2kV |
| Withstand Voltage | I-PE: 1500VAC/1min/5mA O-PE: 1500VAC/1min/5mA | |
| Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Eission | EN55015, FCC part 15 Class B | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20°C~+55°C [-4°F~131°F] |
| Storage Temp., Humidity | -40°C~+85°C [-40°F~185°F] , 5-95%RH | |
| tc | 80°C [ 176°F ] | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80°C [ 176°F ] | |
| Warranty Condition | 5 year | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | N.W: 220g(0.48 lb)±5%/PCS; 50PCS/Carton; 14.2kg(31.3 lb)±5%/Carton; Carton Size: 498*334*160mm(19.6*13.1*6.29 Inch)(L*W*H) | |
| Dimension | 280*30*21mm (11.02*1.18*0.82 Inch) (L*W*H) | |
