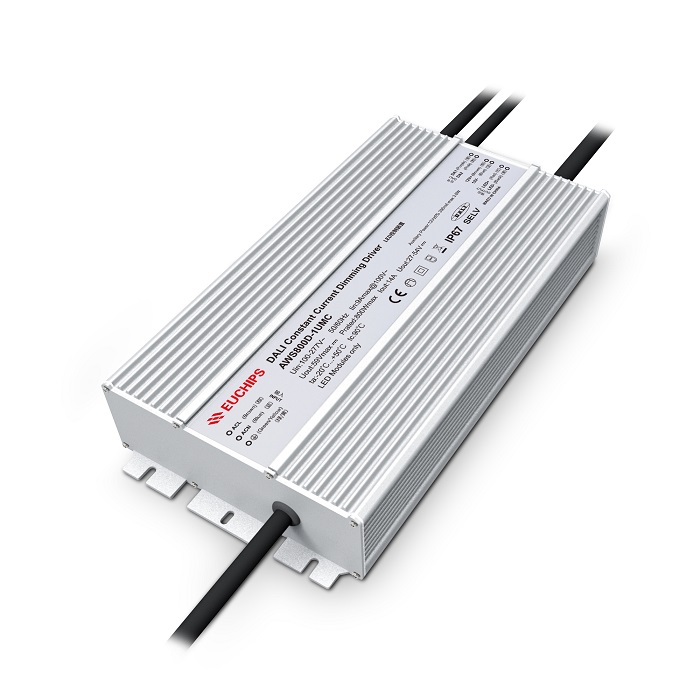

800W DALI CC Driver AWS800D-1UMC
Summary
AWS800D-1UMC is a 800W AC/DC constant current mode output LED driver complies with DALI standard protocol IEC 62386. AWS800D-1UMC can be connected to DALI main controller smooth dimming effect.
Product Features
·Meet DALI Protocol IEC 62386-207
·High efficiency up to 95 %
·Built-in active PFC function
·Dimming effect smooth, no flicker
·Protections: Short circuit, over load, Over Voltage
·Suitable LED lighting application, such as down light,Spotlight,Flood Light, and so on
Technical Paramaters
| Model | AWS800D-1UMC | |
|
Input |
Efficiency | ≥95%@230VAC,Full load |
| Voltage | 100VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | ≤15%@230VAC, Full load | |
| Standby Power | <2W | |
| AC Current(max) | 9A max@100VAC | |
| Inrush Current(max) | Cold start,100A@230VAC 1.5ms | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 14A/27-54VDC/800W |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 59Vmax | |
| Auxiliary Power | 12V±5% 300mA max | |
| Function | Dimming Type | DALI |
| Dimming Range | 5%-100% | |
| Protection | Short Circuit | Close the output and recover after troubleshooting |
| Over Load | Reduced current, hiccup protection | |
| Over Voltage | Reduced current, hiccup protection | |
| Safety& EMC | Surgy | L-N 6KV L-PE 10KV N-PE 10KV |
| Withstand Voltage | I/P-O/P: 3000Vac/1min/<10mA I/P-GND:1500Vac/1min/<10mA O/P-GND:500Vac/1min/5mA O/P-DIM( Signal port ):1500Vac/1min/<5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 3250g±5%/PCS; 3PCS/Carton; 10kg±5%/Carton; Carton Size:318*210*226mm(L*W*H) | |
| Dimension | 279*144*50mm（L*W*H） | |
