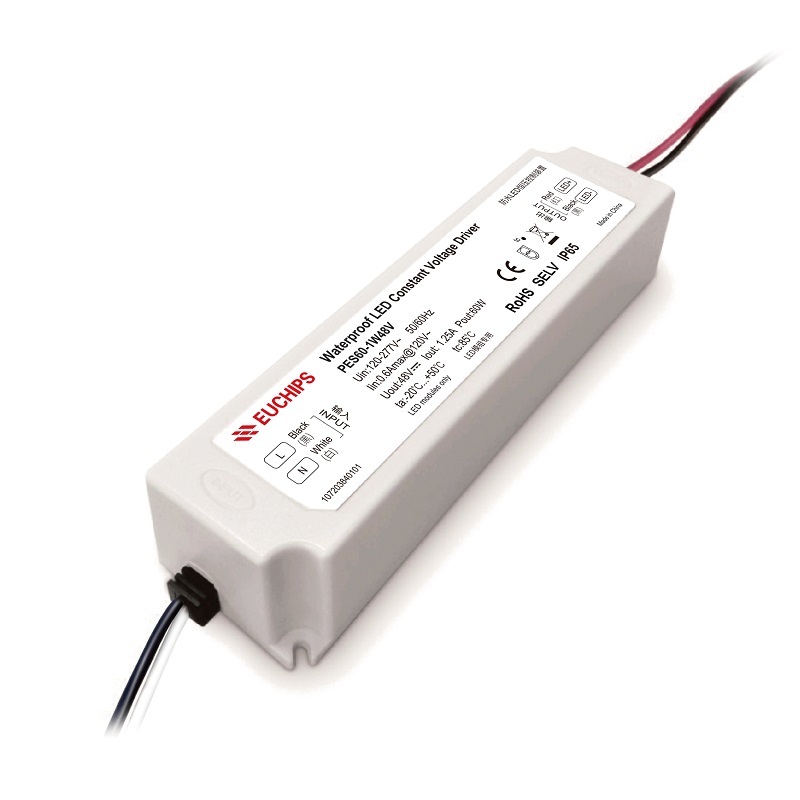

60W 48VDC LED Waterproof Constant Voltage Driverr PES60-1W48V
Product Feature
·Width voltage input,full power output
·Insolated PC design
·Isolated design,safe and reliable
·Protections:Over load,Short circuit,over voltage
·Comply with CE/SELV
·Protection grades is as high as IP65
·5 years warranty
Technical Parameters
|
Model |
PES60-1W48V | |
|
Input |
Efficiency | ≥86%@120VAC, full load ≥86%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| No load power | ≤ 0.5W | |
| Current | 0.6Amax@120VAC 0.3Amax@277VAC | |
| THD | <10%@120VAC, full load <20%@277VAC, full load | |
| PF | ≥0.95@120VAC, full load ≥0.90@277VAC, full load | |
|
Output |
Current/Voltage/Power | 1.25A/48VDC/60W |
| Ripple Voitage | <3% | |
| No load output voltage | 50.4V max | |
| Current Accuracy | ±5% | |
| Channel | 1 | |
| Turn On Delay Time | ≤ 0.5 s, at230Vac (When the light begins to shine) | |
| Protection | Over load | If no output is displayed, the troubleshooting output is normal |
| Short circuit | Short circuit No output, troubleshooting output normal | |
| Over Current | If no output is displayed, the troubleshooting output is normal | |
| Safety & EMC | Lightning Surge | L-N:2kV |
| Withstand Voltage | I/P-O/P:3750VAC/1min/5mA | |
| Safety Standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Eission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~50℃ [-4°F~122°F] |
| Storage Temp.; Humidity | -40℃~85℃ [-40°F~185°F], 20-90%RH | |
| Tc | 85℃[185°F] @230Vac | |
| Material | PC | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:50℃ [122°F] | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 390g(0.86 lb)±5%/PCS; 30PCS/Carton; 12.3kg(27.1 lb)±5%/Carton; Carton Size: 268*230*140mm(10.55*9.05*5.5 Inch)(L*W*H) | |
| Dimension | 165.5*42*34mm(6.51*1.65*1.34 Inch)(L*W*H) | |
