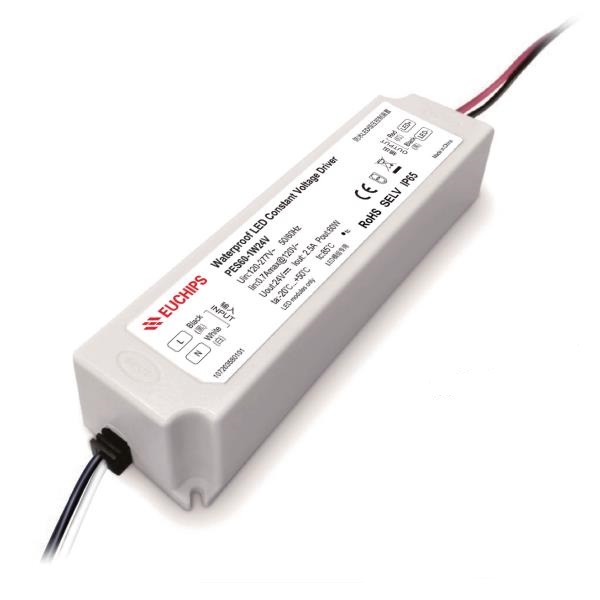

60W 24VDC Non-dimmable CV Driver PES60-1W24V

Short Description:

Product Feature

· Width voltage input,full power output
· Insolated PC design
· Isolated design,safe and reliable
· Protections:Over load,Short circuit,over voltage
· Comply with CE/SELV
· Protection grades is as high as IP65
· 5 years warranty


Product Detail

Product Tags

60W 24VDC Non-dimmable CV Driver PES60-1W24V

Product Feature

· Width voltage input,full power output
· Insolated PC design
· Isolated design,safe and reliable
· Protections:Over load,Short circuit,over voltage
· Comply with CE/SELV
· Protection grades is as high as IP65
· 5 years warranty

Technical Parameters

Model

PES60-1W24V

Input

Efficiency ≥86%@230VAC, full load
Voltage 120VAC-277VAC
Frequency 50/60Hz
No load power ≤ 0.5W
Current 0.7Amax@120VAC
THD <10%@230VAC, full load
PF ≥0.95@230VAC, full load

Output

Current/Voltage/Power 2.5A/24VDC/60W
Ripple Voitage <3%
No load output voltage 25.2V max
Current Accuracy ±5%
Channel 1
Turn On Delay Time ≤ 0.5 s, at230Vac (When the light begins to shine)
Protection Over load If no output is displayed, the troubleshooting output is normal
Short circuit Short circuit No output, troubleshooting output normal
Over Current If no output is displayed, the troubleshooting output is normal
Safety & EMC Lightning Surge L-N:2kV
Withstand Voltage I/P-O/P:3750VAC/1min/5mA
Safety Standards IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
EMC Eission EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5,
Insulation Resisance 5MΩ

Others

Working Temp. -20℃~50℃ (-4°F~122°F)
Storage Temp.; Humidity -40 ~85 (-40°F~185°F) 20-90%RH
Tc 85℃ (185°F) @230Vac
Material PC
IP Rating IP65
Lifetime 50,000h@tc:50 (122°F)
Warranty Condition 5 years
Switch Cycle >25,000 times
Packing Size Net weight: 390g (0.86 lb) ±5%/PCS; 30PCS/Carton; 12.3kg(27.1 lb)±5%/Carton; Carton Size: 268*230*140mm(10.55*9.05*5.51 Inch)(L*W*H)
Dimension 165.5*42*34mm (6.51*1.65*1.34 Inch) (L*W*H)
