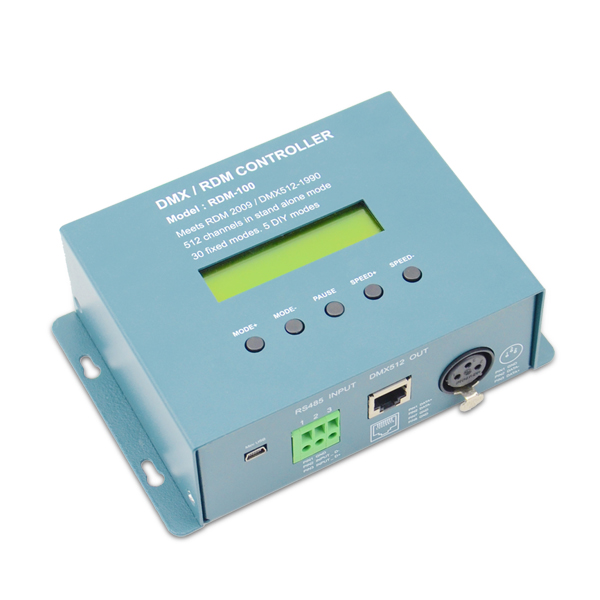

512ch USB PC+Stand Alone RDM Master Controller RDM-100

Short Description:

1. Meet RDM(2009) protocol , compatible with DMX 512 (1990)

2. Can be combined with supporting software scanning RDM equipment, set their start address, read their parameters

3. Liquid crystal display visual display the current state

4. Support buttons long press ,short press and Anti-shake

5. 256 levels of grey, totally 16.77 million colors, really full color.

6. Built-in 30 kinds of fixed mode, keep 5 kinds of custom mode for users to edit

7. Parameters are automatically saved, power off is not lost

8. By supporting software, we can easy update the changing effect

9. Support for multiple output interface: female XLR – 3, RJ45

10. Set aside a 3 line input terminals, can communicate with the glass panel to do the custom control


Product Detail

Product Tags

Technical parameter

Product Name RDM Master Controller
Item RDM-100
Input Voltage 5VDC
Power Consumption < 5W
Transmission signal RDM (2009), DMX512 (1990)
Transmission speed 250Kbps
Pixels Depend on channels of lamp.
Lamp type can be controlled Wall washing light, Tube light, Cube light etc
Description Fixed 30 modes, such as flash, fade, stream, chase, etc
Size 132(mm)*105(mm)*48(mm)
G.W. 710g
N.W. 533g
