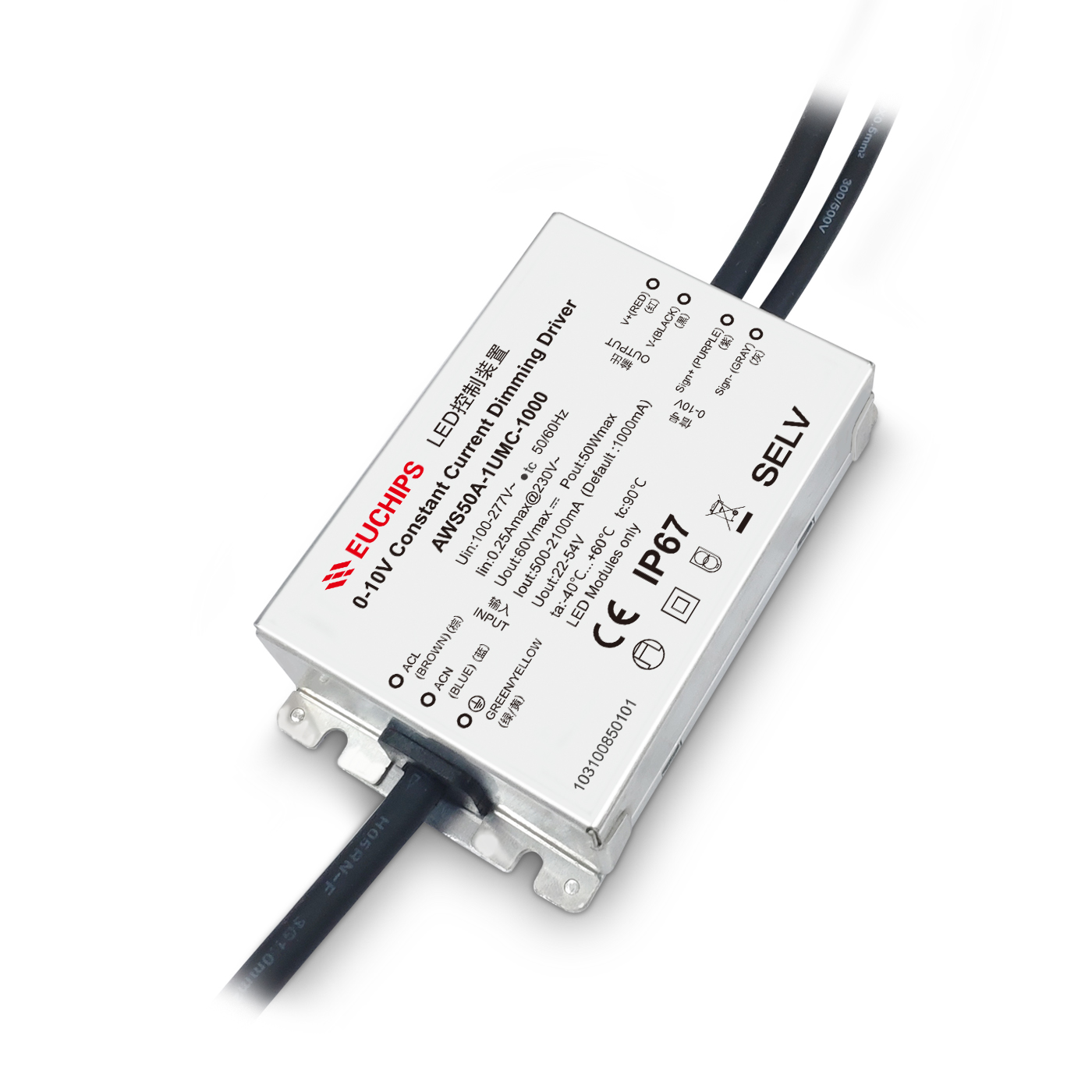

50W 1000mA 0-10V CC Driver AWS50A-1UMC-1000

Short Description:

Support 3-in-1 dimming mode(0-10V active signal, adjustable resistance, PWM)

Wide input voltage of 100VAC ~ 277VAC

High efficiency up to 89%

IP Rating: IP 67

Built-in active PFC function

100% output when no dimming signal input, can be used as normal power supply

Dimming effect smooth, no flicker

Protections: Short circuit, over load

Suitable LED lighting application, such as down light,Spotlight,Flood Light, and so on


Product Detail

Product Tags

Summary

AWS50A-1UMC-1000 is a LED driver with adjustable output current , can adjust the current through Potentiometer ,support 0-10V active signal /adjust resistance/ PWM signal , can be used as normal driver when signal suspending.

Technical Paramaters

Model AWS50A-1UMC-1000
   Input Efficiency 89%@230VAC,Full load
Voltage 100VAC-277VAC
Frequency Range(Hz) 50/60Hz
Power Factor ≥0.95@230VAC,Full load
THD(full load) <10%@230VAC, Full load
Standby Power <0.5W
AC Current(max) 0.25Amax@230VAC
Inrush Current(max) Cold start,40A(twidth=12.8us measured at 50% Ipeak)@230VAC

Output
Current(mA)/Voltage (VDC) Power(W) 500~2100mA (Default :1000mA) /22-54VDC/50W
Ripple Current <3%
Channel 1
Current Tolerance ±5%
No load output voltage 60V Max
Function Dimming Type 0-10V active signal, adjustable resistance, PWM
Dimming Range 5%-100% Dimming to off
 Protection Short Circuit after fault removed Close output ,the output current recovers automatically
Over Load When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
 Safety& EMC Surgy L-N 4kV(Comb wave), L&N-G 6kV(Comb wave)
Withstand Voltage I/P-O/P&Signal:3.75kVac, I/P-FG:2.1kVac    O/P&Signal-FG:1.5kVac, O/P-Signal:500Vac
Safety Standards EN61347-1, EN61347-2-1,UL8750
EMC Eission EN50515, EN61000-3-2
EMC Immunity EN61000-3-3, EN61000-3-2, EN61547
Performance Energy Star
Other EMC EN55015  FCC Part 15 Class B
    Others Working Temp. -40℃~60℃ (-40°F~140°F)
Storage Temp., Humidity -40℃~85℃ (-40°F~185°F) , 20-90%RH
tc 90℃ (194°F)
Material Metal
IP Rating IP67
Lifetime 50,000h@tc:80℃ (176°F)
Warranty Condition 5 years
Switch Cycle >25,000 times
Packing(weight) Net weight: 400g (0.89 lb) ±5%/PCS; 30PCS/Carton; 12.7kg(27.9lb)±5%/Carton; Carton Size:354*238*194mm (13.9*9.37*7.6 Inch)(L*W*H)
Dimension 105*63*32mm (4.13*2.48*1.25 Inch) (L*W*H)

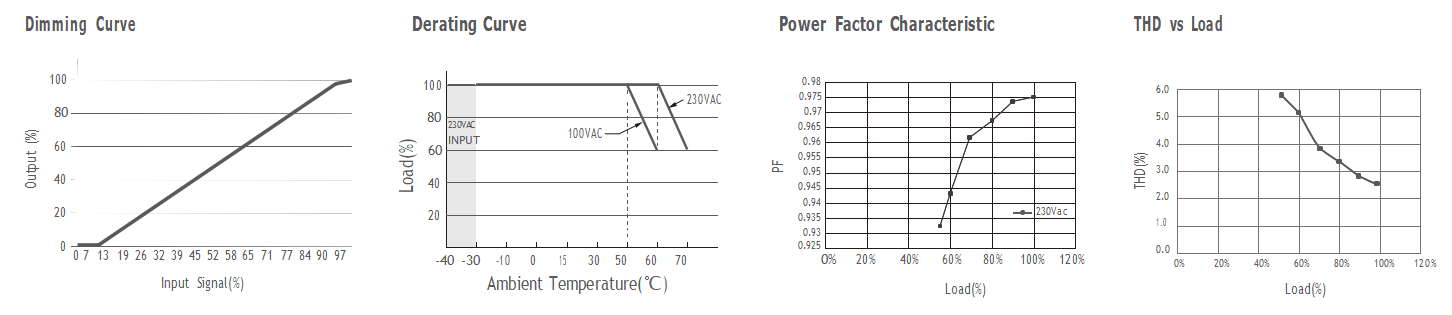

Application

4

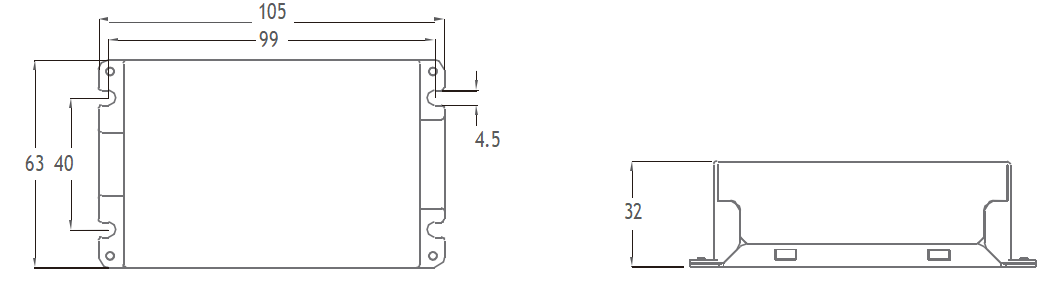

Dimension(mm)

1

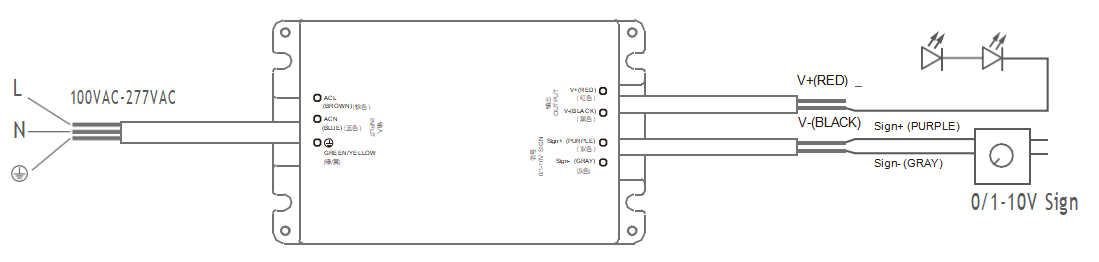

0-10V Wiring

2
3

Cautions

1.This product should be installed by qualified personnel.

2.Good heat dissipation conditions extend product life. Please install the product in a well-ventilated environment.

3.Please make sure LED power supply output voltage, current is used to meet the product requirements.

4.Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.

5.In case of malfunction, do not repair it yourself.

※ The contents of this manual are updated without prior notice. If the function of the product you are using is inconsistent with the instructions, the function of the product shall prevail.Please contact us if you have any questions .
