480W DALI CC Driver AWS480D-1UMC

Short Description:

Meet DALI Protocol IEC 62386-207

High efficiency up to 94 %

Built-in active PFC function

Dimming effect smooth, no flicker

Protections: Short circuit, over load, Over Voltage

Suitable LED lighting application, such as down light,Spotlight,Flood Light, and so on


Product Detail

Product Tags

Summary

AWS480D-1UMC is a 480W AC/DC constant current mode output LED driver complies with DALI standard protocol IEC 62386. AWS480D-1UMC can be connected to DALI main controller smooth dimming effect.

Technical Paramaters

Model AWS480D-1UMC




Input

Efficiency ≥94%@230VAC,Full load
Voltage 100VAC-277VAC
Frequency Range(Hz) 50/60Hz
Power Factor ≥0.95@230VAC,Full load
THD(full load) ≤10%@230VAC, Full load
Standby Power <1W
AC Current(max) 3Amax@230VAC
Inrush Current(max) Cold start,100A@230VAC 100us
  Output Current(mA)/Voltage (VDC) Power(W) 10A/27-48VDC/480W
Channel 1
Current Tolerance ±5%
No load output voltage 60V Max
Auxiliary Power 12V±5% 300mA max
Function Dimming Type DALI
Dimming Range 5%-100%
 Protection Short Circuit after fault removed Close output ,the output current recovers automatically
Over Load When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
Over Voltage Reduced current, hiccup protection
 Safety& EMC Surgy L-N:6kV ; L&N-GND:10kV ;
Withstand Voltage I/P-O/P: 3KVAC/1min<5mA,I/P-FG:1.5KVAC,OP-GND:500VAC,O/P-DIM:1.5KVAC
Safety Standards EN61347-1, EN61347-2-13,UL8750
EMC Eission EN50515, EN61000-3-2,FCC Part 15 Class B
EMC Immunity EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547




Others

Working Temp. -20℃~50℃ (-4°F~122°F)
Storage Temp., Humidity -40℃~85℃ (-40°F~185°F) , 20-90%RH
tc 75℃ (167°F) @230Vac
Material Metal
IP Rating IP67℃
Lifetime 50,000h@tc:75 ℃(167°F)
Warranty Condition 5 years
Switch Cycle >25,000 times
Packing(weight) Net weight: --g±5%/PCS; 10PCS/Carton; --kg±5%/Carton; Carton Size:327*288*246mm (12.87*11.3*9.68 Inch) (L*W*H)
Dimension 289*90*47mm (11.3*3.54*1.85 Inch) (L*W*H)

Application

4

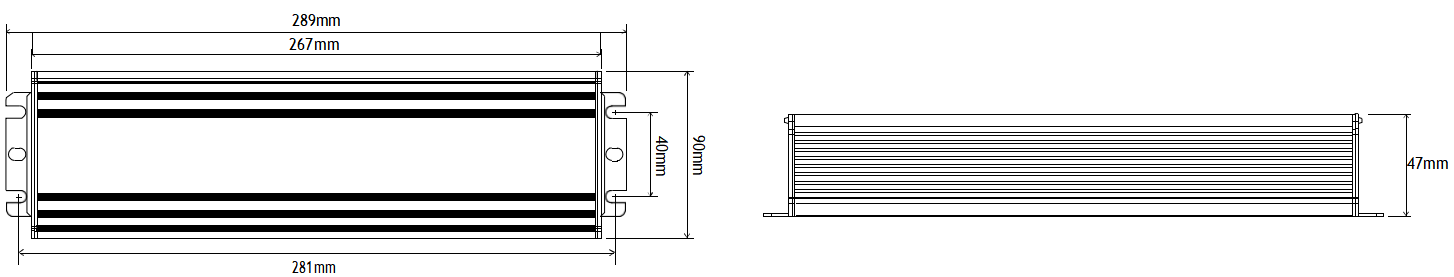

Dimension(mm)

1

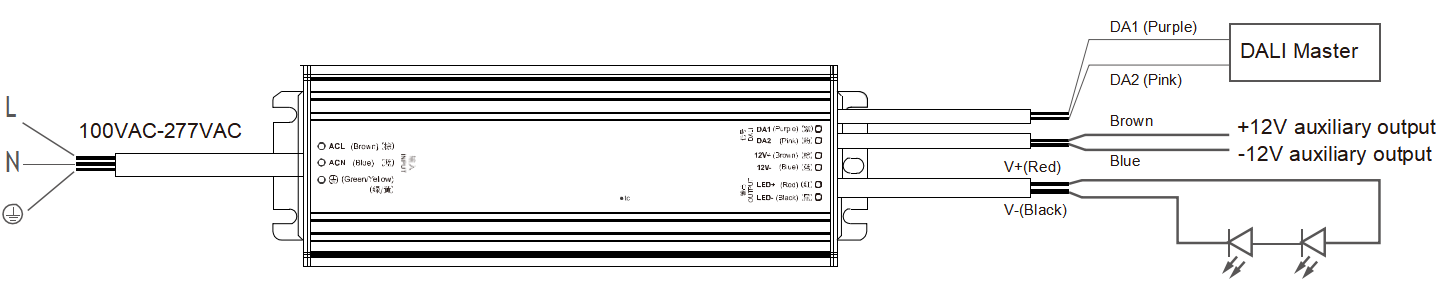

Wiring

2

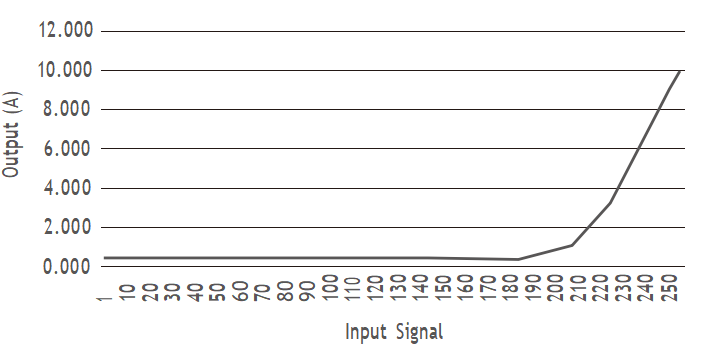

Dimming Curve

3

Cautions

1.This product should be installed by qualified personnel.

2.Good heat dissipation conditions extend product life. Please install the product in a well-ventilated environment.

3.Please make sure LED power supply output voltage, current is used to meet the product requirements.

4.Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.

5.In case of malfunction, do not repair it yourself.

※ The contents of this manual are updated without prior notice. If the function of the product you are using is inconsistent with the instructions, the function of the product shall prevail.Please contact us if you have any questions .
