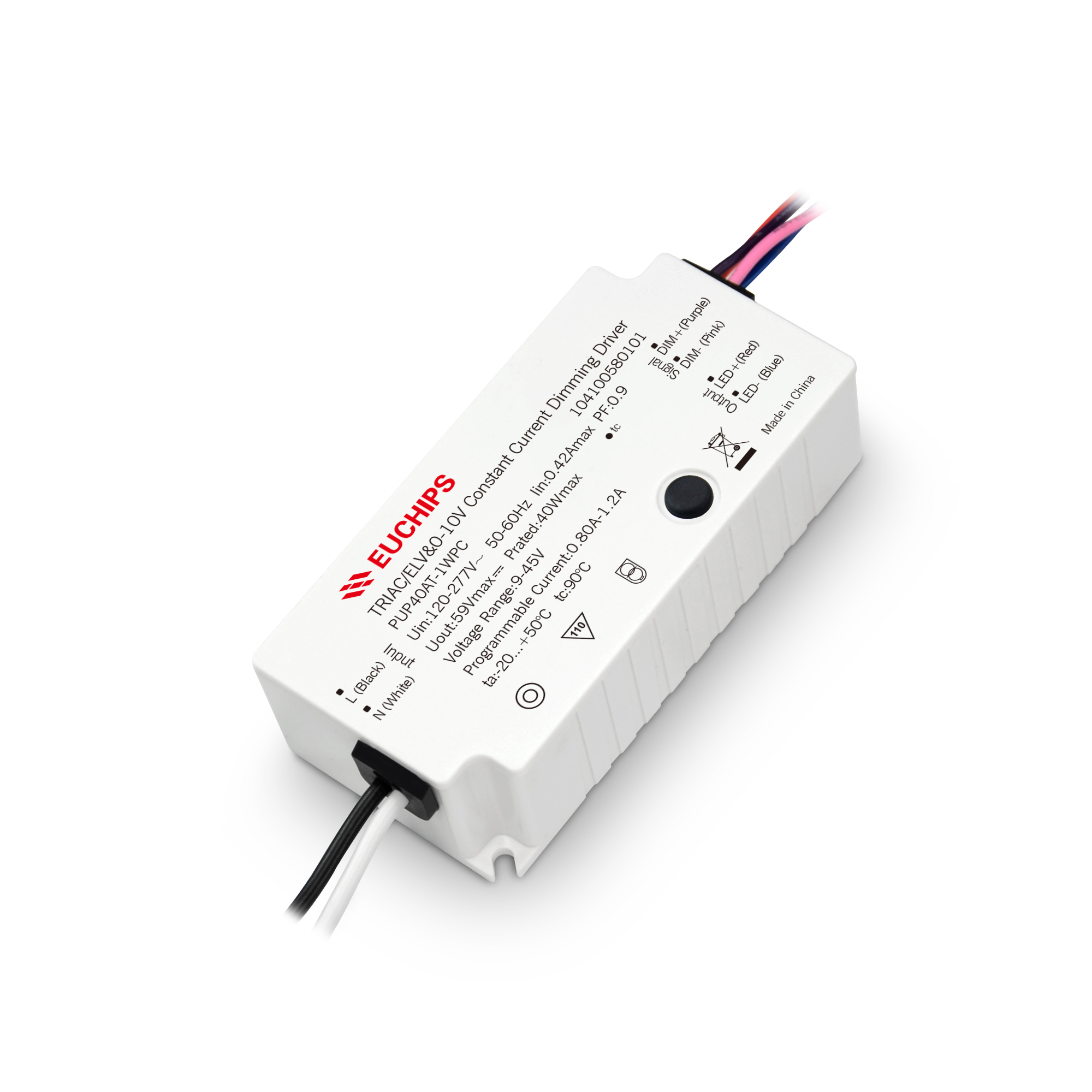

40W 800-1200mA 0-10V&Triac CC Driver PUP40AT-1WPC

Short Description:

Product Features

Single channel output, output current can be selected by software

Compatible with TRIAC (forward-phase or leading-edge), ELV (reverse-phase or trailing-edge) and 0–10 V dimmers

TRIAC and ELV dimming at 120 Vac only

Class 2 power supply

Protections: Over load, Over Voltage and short-circuit

Suitable for indoor LED lighting application


Product Detail

Product Tags

Summary

PUP40AT-1WPC is a constant current mode output LED driver.

The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, 0-10V to achieve a smooth dimming effect.

Product Features

·Single channel output, output current can be selected by software

•Compatible with TRIAC (forward-phase or leading-edge), ELV (reverse-phase or trailing-edge) and 0–10 V dimmers

•TRIAC and ELV dimming at 120 Vac only

•Class 2 power supply

•Protections: Over load, Over Voltage and short-circuit

·Suitable for indoor LED lighting application

Technical Paramaters

Model PUP40AT-1WPC








Input

Efficiency 85%@120VAC, Full load
Frequency 47-63Hz
Voltage 120VAC-277VAC
Current 0.42Amax@120VAC, 0.25A@230VAC, 0.21A@277VAC
PF 0.95@120VAC, 0.9@277VAC, Full load
THD(full load) 10%@120VAC, 20%@277VAC, Full load
Inrush Current Cold start,6A@120VAC 31us 15A@277VAC 28us
Standby power <2.5W
No load power <2.5W
Turn on delay Time ≤ 0.75s, at230Vac (When the light begins to shine)








Output

Current 800-1200mA
Voltage 9-45V
Power 36W-40W
Channel 1
No load output voltage 59V Max
Current Accuracy ±5%
Over power limit ≥120%
Ripple ≤ 60mA
PWM Frequency 20K Hz
Protection Over Voltage Reduce current protection, restore normal operation after troubleshooting
Over load Reduce current protection, restore normal operation after troubleshooting
Short circuit No output, self recovery after removing the fault
Function Dimming type 0-10V, TRIAC/ELV(@120VAC 60Hz)
Dimming range 0.5%-100%(0-10V) 1%-100%(TRIAC/ELV)
Dimming curve 0-10V: (Linearity) TRIAC/ELV: (Logarithm)
Flicker Flicker free


Safety & EMC

Surge L-N:2.5KV (ANSI/IEEE C62.41.1-2002 & c62.41.2-2002 category A, 2.5 kV ringwave)
Withstand Voltage I/P-O/P: 2000Vac/1min/<5mA O/P-DIM( Signal port ):1500Vac/1min/<5mA
Safety standards UL8750/UL1310/CSA25013,CSA class P
EMI Eission EN55015,EN61000-3-2 Class C,IEC61000-3-3
EMC Immunity FCC class B(120V)/class A(277V)
















Others

IP rating IP20
Working temp. (-20~+50) ℃ [-4°F~122°F]
Relative humidity 20~90% RH
tc 90℃ [ 194°F ]
Lifetime 50,000h@tc:85℃[ 185°F ]
Warranty Condition 5 years
Switch cycle >25,000 times
Material PC
Dimension 88*43*26.5mm (3.46*1.69*1.04 Inch)(L*W*H)
Pack Information N.W: 173g(0.38 lb)±5%/PCS; 100PCS/Carton; 17.8kg(39.2Ib)±5%/Carton; Carton Size: 398x210x208mm(15.7*8.26*8.19 Inch)(L*W*H)
