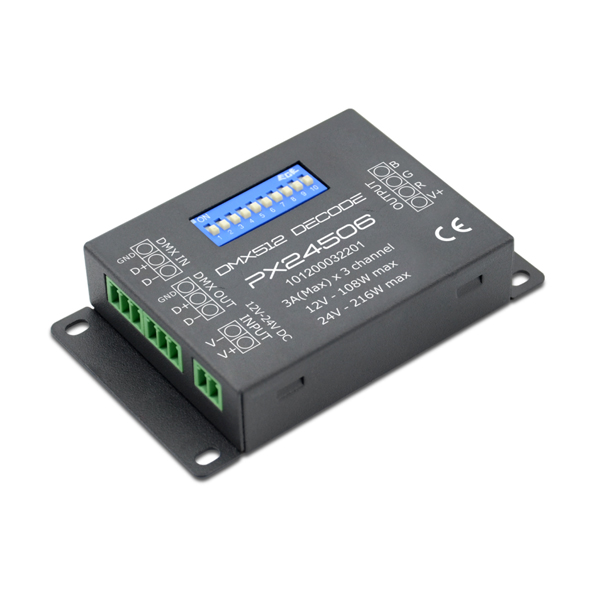

3A*3ch DMX512/RDM Decoder PX24506

Short Description:

· Meets DMX512/1990

· 256-level brightness,full-color control

· With 3 channels output and Max.3A/CH output

· With control system,can express perfect effect

· With the light color selected mechanism, and be able to control the light with 1~3 colors

· Can set the DMX address freely

· Can be custom-made


Product Detail

Product Tags

3A*3ch DMX512/RDM Decoder PX24506

Features

· Meets DMX512/1990
· 256-level brightness,full-color control
· With 3 channels output and Max.3A/CH output
· With control system,can express perfect effect
· With the light color selected mechanism, and be able to control the light with 1~3 colors
· Can set the DMX address freely
· Can be custom-made

Technical Parameters

Decode CH.: 3CH
Input Signal: DMX-512/1990 digital signal
Output Signal: can drive 3A(Each CH.)
Power Supply: DC 12~24V
Power Dis.: <1W
Power Output: <216W(24V);<108W(12V)
Operating Temp.: 0~50℃
Size: 86(mm)*51(mm)*17.8(mm)
Weight: 136g
