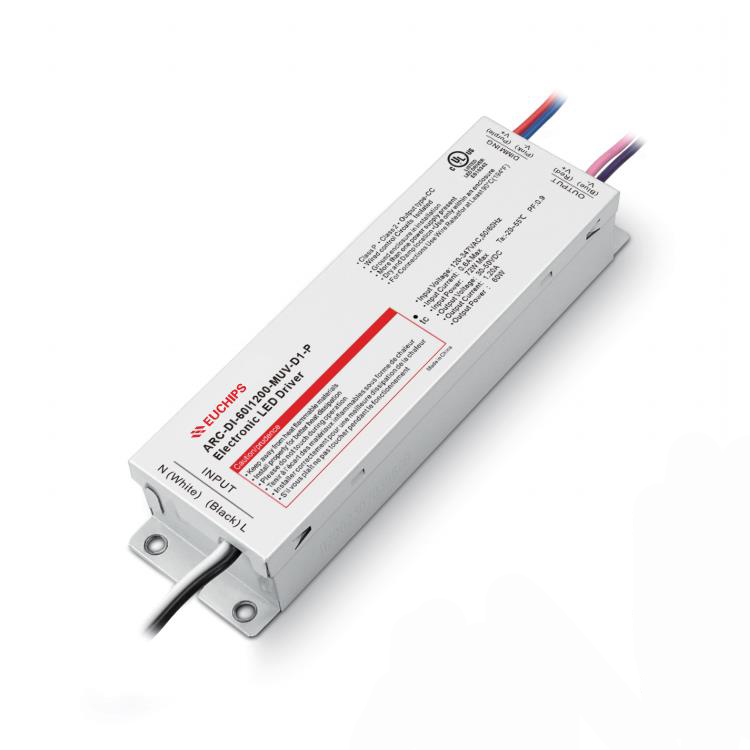

22-60 W 0-10V/DIP/PWM Dimmable Driver ARC DI 22-60 W P Series
Features
· Supply Voltage 108-382Vac
· Great Surge Immunity 2.5k(ringwave)
· 50000Hour Life @ Tc=90℃
· 5Year Warranty@Tc<=90℃
· ±5% Output Current Accuracy
· 0-10V/DIP Dimmable
· UL Class P, Class 2
· Safety according to UL8750 & UL 1310
| Model No. | Input Voltage（V） |
Input Current（A） |
PF | Output Voltage |
MAX Output power |
MAX Iout(mA) |
Eff(Max) | Life at Tc 90℃(h) |
| ARC-DI-60I1800-UNVDI-P | 120-277 | 0.76 | 0.9 | 24-33 | 60 | 1800 | 86% | 50000 |
| ARC-DI-60I420-UNV-DI-P(EX) | 120-277 | 0.76 | 0.9 | 24-33 | 60 | 1800 | 86% | 50000 |
| ARC-DI-60I1800-UNV-DI+D3-P | 120-277 | 0.76 | 0.9 | 24-33 | 60 | 1800 | 86% | 50000 |
| ARC-DI-60I1800-UNV-DI+D3-P3 | 120-277 | 0.76 | 0.9 | 24-33 | 60 | 1800 | 86% | 50000 |
| ARC-DI-60I1800-UNV-DIS-P | 120-277 | 0.76 | 0.9 | 24-33 | 60 | 1800 | 86% | 50000 |
| ARC-DI-60I420-UNV-DIS-P(EX) | 120-277 | 0.76 | 0.9 | 24-33 | 60 | 1800 | 86% | 50000 |
| ARC-DI-60I1800-UNV-DIS+D3-P | 120-277 | 0.76 | 0.9 | 24-33 | 60 | 1800 | 86% | 50000 |
| ARC-DI-60I1800-UNV-DIS+D3-P3 | 120-277 | 0.76 | 0.9 | 24-33 | 60 | 1800 | 86% | 50000 |
| ARC-XX-AAIBBBB-CCC-XYZ-P | CCC | 0.76 | 0.9 | 24-50 | 22-60 | 420-1800 | 86% | 50000 |
Technical Parameters
| THD | <20%@70-100%load, refer to THD vs. Load curve |
| Inrush Current | 40A peak, 1.2ms duration, <0.25A2s@120Vac, Cold Start |
| Surge Protection | L-N 2.5KV L/N-PE 2.5KV The RING WAVE is IEC61000-4-12 |
| Leakage Current | 0.75mA max @277Vac 60Hz, UL8750 |
| Current Accuracy | ±5%Io |
| Ripple Current | Ip-p:8%Io max |
| Setup Time | 0.75s max |
| Short Circuit | Auto recovery. The output recovers when short is removed |
| EMC | FCC Part 15 Class A |
| Operating Temperature | -20℃～+55℃ ；10%RH～100%RH |
| Storage Temperature | -40℃～+85℃； 5%RH～100%RH |
| MTBF | ≥320,000 hours, 75℃ case temperature (MIL-HDBK-217F) |
| Case Temperature | 90℃ max, marked in the Tc point of label |
