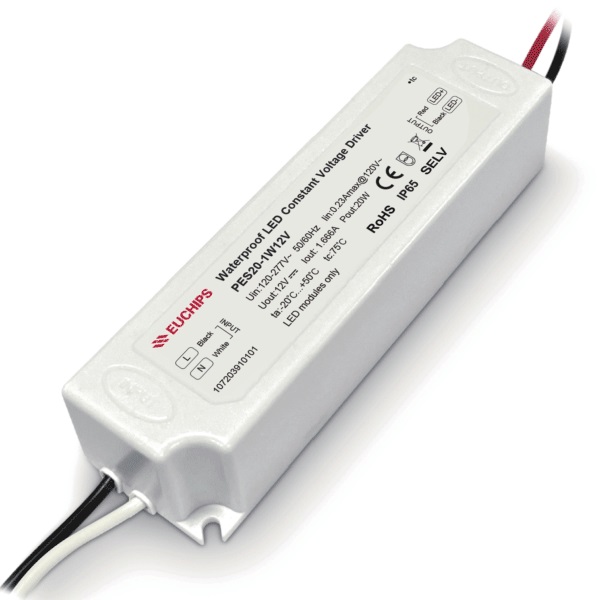

20W 12VDC Non-dimmable CV Driver PES20-1W12V
Product Feature
·Insolated PC design
·Isolated design,safe and reliable
·Protections: Short circuit, Over load, over current
·Protection grades is as high as IP65
·5 years warranty
Technical Parameters
|
Model |
PES20-1W12V | |
|
Input |
Efficiency | ≥82%@120VAC, full load ≥84%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Current | 0.23Amax@120VAC 0.12Amax@277VAC | |
| PF | ≥0.98@120VAC, full load ≥0.9@277VAC, full load | |
| THD | <10%@120VAC, full load <15%@277VAC, full load | |
| Inrush Current | Cold start,10A@120VAC 300us Cold start,25A@277VAC 300us | |
| No load power | <0.5W | |
| Turn On Delay Time | ≤0.5s, at230Vac (When the light begins to shine) | |
|
Output |
Current | 1.666A |
| Voltage | 12VDC | |
| Power | 20W | |
| Channel | 1 | |
| Voltage Accuracy | ±5% | |
| Ripple Voitage | ±3% | |
| No load output voltage | 12.6VDC max | |
| Protection | Over Load | Voltage drop hiccup, troubleshoot the fault output normal |
| Short circuit | Short circuit No output, troubleshooting output normal | |
| Over Current | If no output is displayed, the troubleshooting output is normal | |
|
Safety & EMC |
Lightning Surge | L-N:2kV |
| Withstand Voltage | I/P-O/P:3750VAC/1min/5mA | |
| Safety Standards | EN61347-1,EN61347-2-13,UL8750,UL1310 | |
| EMC Eission | EN55015,FCC Part 15 Class B | |
| EMC Immunity | EN61000-3-3,EN61000-3-2,EN61547 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~+50℃ [-4°F~122°F] |
| Storage Temp.; Humidity | -40℃~85℃ [-40°F~185°F] , 20-90%RH | |
| Tc | 75℃ [167°F] | |
| Material | PC | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:75℃ [167°F] | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 180g(0.39 lb)±5%/PCS; 60PCS/Carton; 11.3kg(24.9 lb)±5%/Carton; Carton Size: 300*224*196mm(11.8*8.81*7.71 Inch)(L*W*H) | |
| Dimension | 118*35*26mm(4.64*1.38*1.02 Inch) | |
