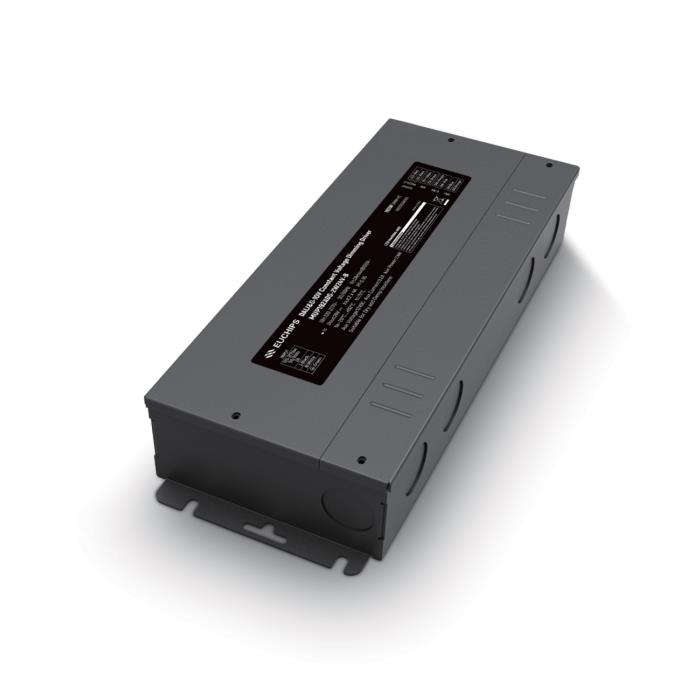

192W 24VDC DALI & 0-10V CV Driver MUP192ADS-2W24V-B

Short Description:

Product Features

· Dual channel constant voltage output, the maximum output current per channel is 4A

· Wide input voltage of 120VAC ~ 277VAC

· Dimming range of 0.1-100%, and dimming effect smooth, Flicker free

· 100% output when no dimming signal input, can be used as normal power supply

· IP20, suitable for indoor LED lighting application

· Protection: Over load; short circuit; Over Current

· Up to 50000-hour life time.

· 5 year warranty


Product Detail

Product Tags

Summary

MUP192ADS-2W24V-B is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386, and provides DALI,0/1-10V active signal dimming.

Product Features

· Dual channel constant voltage output, the maximum output current per channel is 4A

· Wide input voltage of 120VAC ~ 277VAC

· Dimming range of 0.1-100%, and dimming effect smooth, Flicker free

· 100% output when no dimming signal input, can be used as normal power supply

· IP20, suitable for indoor LED lighting application

· Protection: Over load; short circuit; Over Current

· Up to 50000-hour life time.

· 5 year warranty

Technical Paramaters
Model MUP192ADS-2W24V-B








Input

Efficiency ≥91%@120VAC, ≥93%@277VAC, full load
Voltage 120VAC-277VAC
Frequency Range(Hz) 50/60Hz
AC Current(max) 2Amax @120VAC 1Amax@230VAC 1Amax@277VAC
PF ≥0.95@120VAC  ≥0.90@277VAC, full load
THD <10%@120VAC <10%@277VAC, full load
Inrush Current(max) Cold start,40A@120VAC 240us
Standby power <0.5W@120VAC
No load power <0.75W@120VAC
Turn on delay Time <0.75s, @120Vac (When the light begins to shine)








Output

Current 2 Channel, 4A per channel
Voltage 24VDC
Voltage Range 24VDC ±5%
Power 96W per channel, total 192W
Overload power limitation ≥105%
Ripple & Noise ≤720mV
Channel 2
Auxiliary Power (Vaux) 12VDC±3% 200mA
Frequency 20KHz PWM


Function

Dimming Type 0-10V, DALI
Dimming Range 0.1%-100% Dimming to off
Dimming curve Logarithm
Flicker Flicker free IEEE1789
 Protection Short Circuit Close output, Automatic recovery after troubleshooting
Over Load Close output, Automatic recovery after troubleshooting
Over Current Close output, Automatic recovery after troubleshooting


Safety&EMC

Surge L-N: 2KV L-N-PG:4KV
Withstand Voltage I/P-O/P: 2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA O/P-DIM( Signal port ):1500Vac/1min/<5mA
Safety standards UL8750 UL1310 CSA C22.2 No250.13
EMC Eission FCC PART15B
Energy efficiency Title24










Others

Working Temp. -20℃~+60℃ (-4°F~140°F)
Storage Temp., Humidity -40℃~85℃(-40°F~185°F), 20-90%RH
tc 75℃(167°F)
Material Metal
IP Rating IP20
Lifetime 50,000h@tc:75℃(167°F)
Warranty Condition 5 years
Switch Cycle 25,000 times
Packing(weight) Net weight: 1650g (3.63 lb) ±5%/PCS; 8PCS/Carton;13.7kg(30.2 IB)±5%/Carton; Carton Size: 452*284*135mm(17.8*11.2*5.3 Inch)(L*W*H)
Dimension 262*104*46mm (10.31*4.1*1.8 Inch) (L*W*H)
