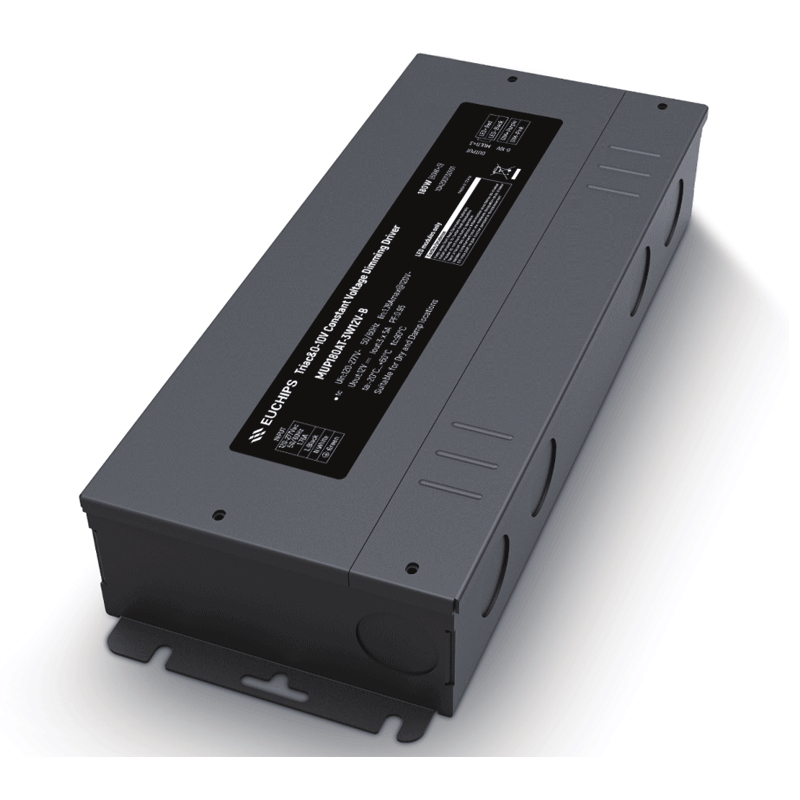

180W 12V 0-10V&TRAIC CV LED driver MUP180AT-3W12V-B
Summary
MUP180AT-3W12V-B is a constant voltage mode output LED driver.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, 0-10V to achieve a smooth dimming effect.
Product Features
3 channel constant voltage output, Output Current 5A per channel
Wide input voltage of 120VAC ~ 277VAC
Dimming effect smooth, Flicker free
100% output when no dimming signal input, can be used as normal power supply
Protection: Over load; short circuit; Over Current
IP20, suitable for indoor LED lighting application
Technical Paramaters
| Model | MUP180AT-3W12V-B | |
|
Input |
Efficiency | ≥88%@120VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 1.76Amax@120VAC 0.93Amax @230VAC 0.77Amax @277VAC | |
| PF | ≥0.95@120VAC, ≥0.90@277VAC, full load | |
| THD | <10%@120VAC, <15%@277VAC, full load | |
| Inrush Current(max) | Cold start, 40A@120VAC 500us, 80A@277VAC 200us | |
| Standby power | <5W@120VAC | |
| No load power | <5W@120VAC | |
| Turn on delay Time | <0.75s, @120Vac (When the light begins to shine) | |
|
Output |
Current | 3 Channel, 5A per channel |
| Voltage | 12VDC | |
| Voltage Range | 12VDC ±5% | |
| Power | 60W per channel, total 180W | |
| Channel | 3 | |
| Power limit | 120% | |
| Ripple | ≤300mV | |
| PWM Frequency | 20K Hz | |
| Function | Dimming Type | 0-10V, TRIAC/ELV(@120VAC 60Hz) |
| Dimming Range | 0.1%-100%(0-10V) 1%-100%(TRIAC/ELV) | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
| Protection | Short Circuit | Turn off output, self recover after troubleshooting |
| Over Load | Reduce current hiccup protection, self recover after troubleshooting | |
| Over Current | Reduce current hiccup protection, self recover after troubleshooting | |
| Safety&EMC | Surge | L-N 2000VAC L-N-PG 4000VAC |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA O/P-DIM( Signal port ):500Vac/1min/<5mA | |
| Safety standards | UL8750 UL1310 CSA25013.CSA Class P | |
| EMC Eission | FCC PART15B | |
| EMC Immunity | IEC 61000-4-2-3-4-5-6-8-11 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | (-20~+60) ℃ [-4°F~140°F] |
| Storage Temp., Humidity | (-40~+90)℃ [-40°F~194°F] | |
| tc | 90℃ [ 194°F ] | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ [ 185°F ] | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 937g (2.06 lb)±5%/PCS; 8PCS/Carton;8.0kg(17.6 IB)±5%/Carton; Carton Size: 452*284*135mm(17.8*11.2*5.3 Inch)(L*W*H) | |
| Dimension | 262*104*46mm (10.31*4.1*1.8 Inch) (L*W*H) | |
