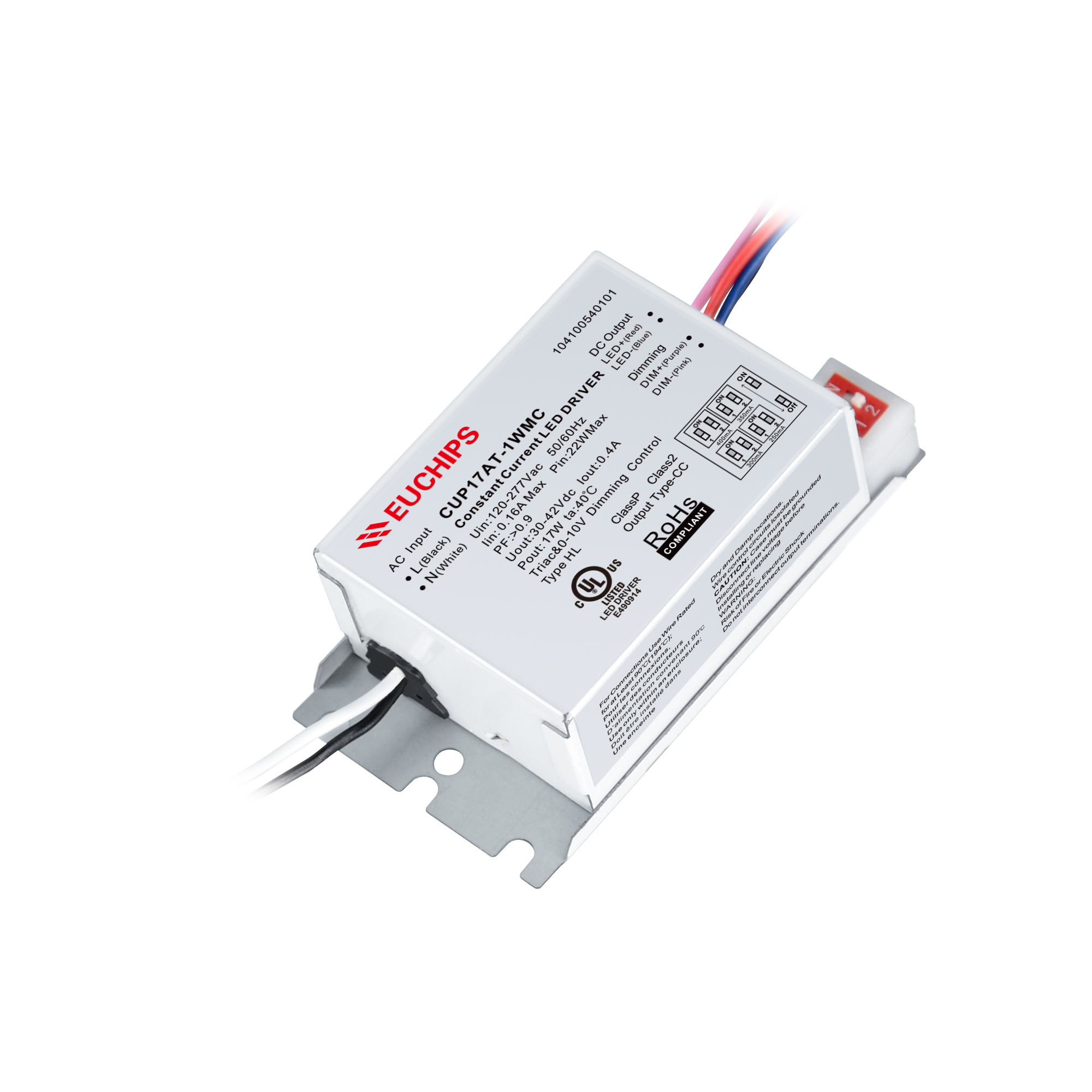

17W 250/300/350/400mA Triac&ELV &0-10V CC Driver CUP17AT-1WMC

·Comply With UL8750/CSA-22.2 No.250.13 Safety Regulations

·All material to be ROHs compliant to Directive 2011/65/EU and (EU)2015/863

·Class P, Class 2

·5 Years Warranty (Life expectancy of 50,000h at tc≤75°C)

·Comply With FCC Part15 Class B (@120Vac input Voltage)

·Output Power(Current) Adjustable

Send email to us Download as PDF

Product Detail

Model	CUP17AT-1WMC
Input	Efficiency	≥84%@120 ≥82%@277VAC
	Voltage	120-277VAC
	Power Factor	>0.95@120V >0.90@277V
	THD(full load)	<20%
	AC Current	0.17A（120VAC） 0.08A (277VAC)
	Inrush Current(max)	Max 30A
Output	Current(mA)	400/350/300/250mA 30-42VAC
Function	Dimming Type	0-10V and Triac (120V 60Hz only)
	Dimming Range	10%-100% @120-277Vac(0-10V Dimming)
	Flicker Percentage	<30% ,comply with CEC Title 20
Safety& EMC	Surge	IEEE C62.41 2.5kV Ring Wave
	Withstand Voltage	I/P-O/P.I/P-FG: (2U+1000Vac)/5mA/1min,O/P-FG: 500Vac/5mA/1min
	Safety Standards	UL 8750-LED equipment for use in lighting product CSA C22.2 No.250.13-LED equipment for lighting applications
Others	Lifetime	50,000h at tc≤75°C (167°F)
	Material	metal
	Dimension	3.4×1.9×1.1 Inch 86.447.627.8mm(LWH)
	Packing(weight)	Net weight: 190g (0.42 lb) ±5%/PCS
	IP Rating	IP20
	Working Temp.	-20°C~40°C (-4°F~104°F)
	Storage Temp., Humidity	-40°C~55°C (-40°F~131°F)
	Switch Cycle	>25,000 times
	Warranty Condition	5 years
