15A*2ch Data Repeater RP520

Short Description:

● For the power of synchronous change signal amplification

● High power of each output

● High-speed process data, no delay, no flicker

● Acceptable PWM control

● DC12-24V wide voltage input

● CCT two-channel signal control, 15A per channel

● Applicable any LED module


Product Detail

Product Tags

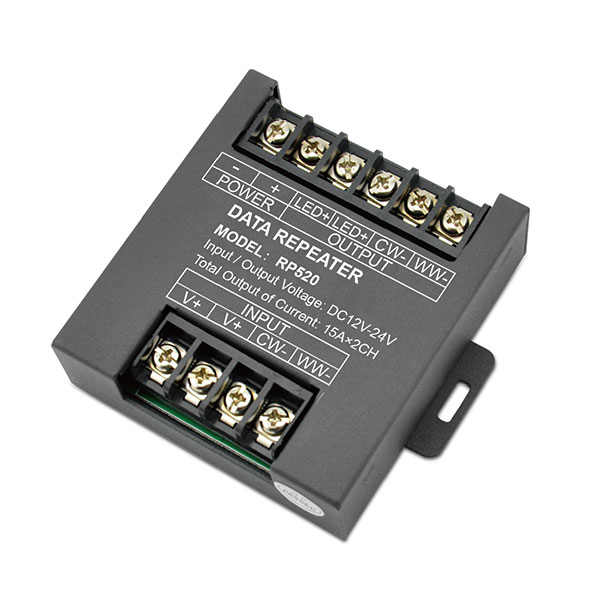

15A*2ch Data Repeater RP520

Thanks for using our Power Repeater. Before using this product, please read this manual
carefully and check if there’s any defect during transportation before use, if so please don’t
use and inform your supplier immediately.

Features
● For the power of synchronous change signal amplification
● High power of each output
● High-speed process data, no delay, no flicker
● Acceptable PWM control
● DC12-24V wide voltage input
● CCT two-channel signal control, 15A per channel
● Applicable any LED module

Technical Parameters

Input voltage DC12V~24V
Signal output CCT two signals
Max Load current 15A/CH*2CH
Output Power 360W max(12V) 720W max(24V)
Controller size L82.4*W91*H25 mm
Package size L84*W93*H27 mm
G.W. 224g
