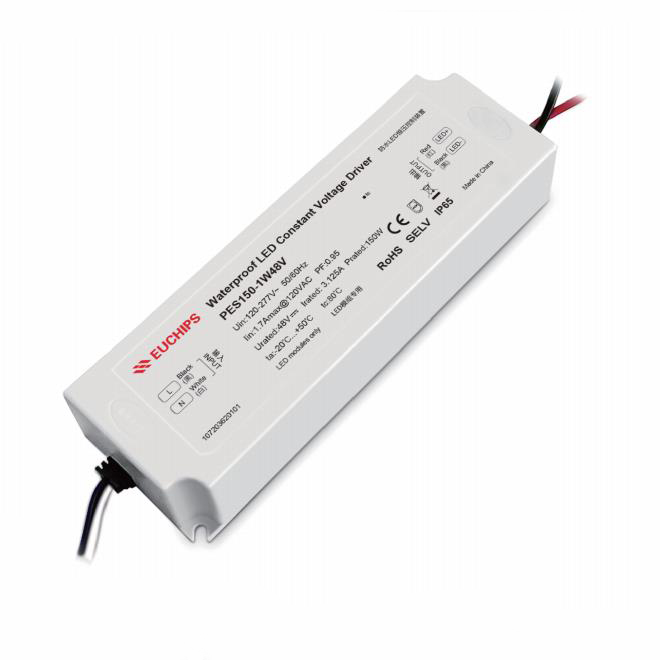

150W 48VDC Non-dimmable CV Driver PES150-1W48V

Short Description:

Product Feature

·full power output

·Insolated PC design

·Isolated design,safe and reliable

·Protections:Over load,Short circuit,over Current

·Protection grades is as high as IP65

·5 years warranty

· Flicker Free


Product Detail

Product Tags

Product Feature

·full power output

·Insolated PC design

·Isolated design,safe and reliable

·Protections:Over load,Short circuit,over Current

·Protection grades is as high as IP65

·5 years warranty

· Flicker Free

Technical Parameters

Model

PES150-1W48V






Input

Efficiency ≥93%@230VAC, Full load
Voltage 120VAC-277VAC
Frequency 50/60Hz
Power Factor ≥0.95@230VAC, full load
Current 1.7Amax@120VAC
Inrush Voltage Cold start,50A@230VAC 540us
THD <10%@230VAC full load
No load output voltage <0.5W


Output

Current/Voltage/Power 3.125A/48VDC/150W
Channel 1
No load output voltage 50.4VDC max
Ripple Voltage ±3%
Output Voltage ±5%
Turn On Delay Time ≤0.5 s, at230Vac (When the light begins to shine)
Protection Over load Reduce current burp protection, troubleshoot normal output
Short circuit Short circuit No output, troubleshooting output normal
Over Current Voltage drop, troubleshooting output normal

Safety & EMC

Lightning Surge L-N:2000VAC
Withstand Voltage I/P-O/P:3750Vac/1min/<5mA
Safety Standards IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
EMC Eission EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2
Insulation Resisance 5MΩ






Others

Working Temp. -20℃~50℃
Storage Temp.; Humidity -40℃~85℃, 20-90%RH
Tc 80℃
Material Plastic case
IP Rating IP65
Lifetime 50,000h@tc:80℃
Warranty Condition 5years
Switch Cycle >50,000 times
Packing Size Net weight: 750g±5%/PCS; 20PCS/Carton; 20kg±5%/Carton; Carton Size: 304*227*220mm(L*W*H)
Dimension 190*62*38mm(L*W*H)
