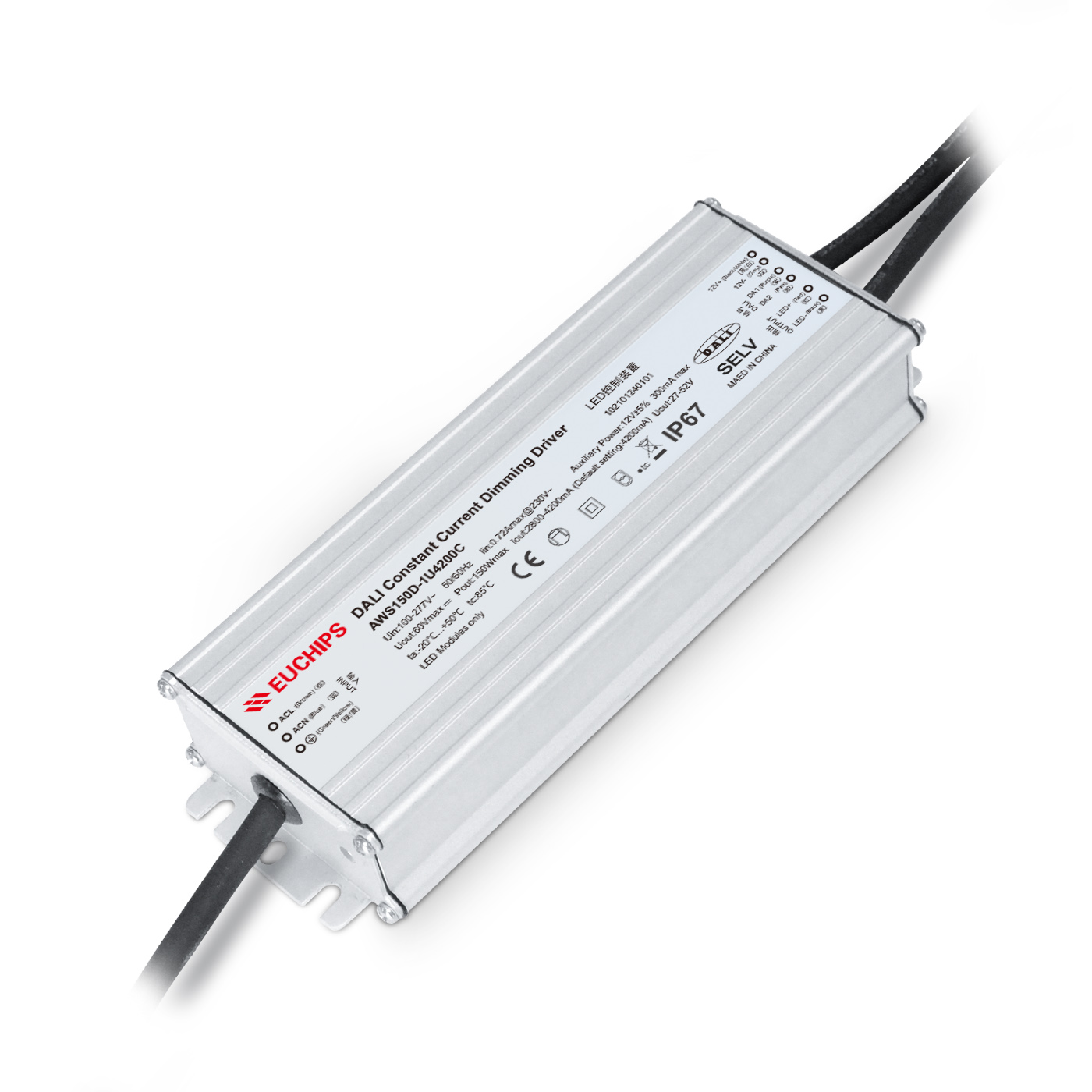

150W 4200mA DALI CC Driver AWS150D-1U4200C
Summary
AWS150D-1U4200C is a 150W AC/DC constant current mode output LED driver complies with DALI standard protocol IEC 62386. AWS150D-1U4200C can be connected to DALI main controller smooth dimming effect.
Technical Paramaters
| Model | AWS150D-1U4200C | |
|
Input |
Efficiency | 91%@230VAC,Full load |
| Voltage | 100VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.98@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| Standby Power | <0.5W | |
| AC Current(max) | 0.72Amax@230VAC | |
| Inrush Current(max) | Cold start,60A(twidth=89us measured at 50% Ipeak)@230VAC | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 2800~4200mA (Default setting:4200mA) /27-52VVDC/150W |
| Ripple Current | 3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 60V Max | |
| Function | Dimming Type | DALI |
| Dimming Range | 5%-100% | |
| Protection | Short Circuit | after fault removed Close output ,the output current recovers automatically |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Safety& EMC | Surgy | L-N:6kV ; L&N-GND:10kV ; |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA I/P-GND:1500VAC/1min/5mA O/P-GND:500VAC/1min/5mAO/P-DIM( Signal port ):1500VAC/1min/5mA | |
| Safety Standards | EN61347-1, EN61347-2-1,UL8750 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-3-3, EN61000-3-2, EN61547 | |
| Performance | Energy Star | |
| Other EMC | EN55015 FCC Part 15 Class B | |
|
Others |
Working Temp. | -20℃~50℃ (-4°F~122°F) |
| Storage Temp., Humidity | -40℃~85℃ (-40°F~185°F) , 20-90%RH | |
| tc | 85℃ (185°F) | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:85℃ (185°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: --g±5%/PCS; 20PCS/Carton; --kg±5%/Carton; Carton Size:472*246*242mm (18.5*9.7*9.5 Inch) (L*W*H) | |
| Dimension | 200*67.6*33.5mm (7.87*2.67*1.31 Inch) (L*W*H) | |
Application

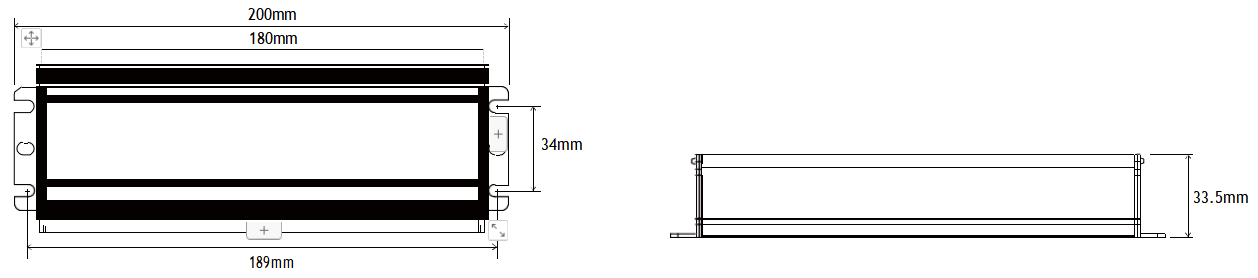

Dimension(mm)

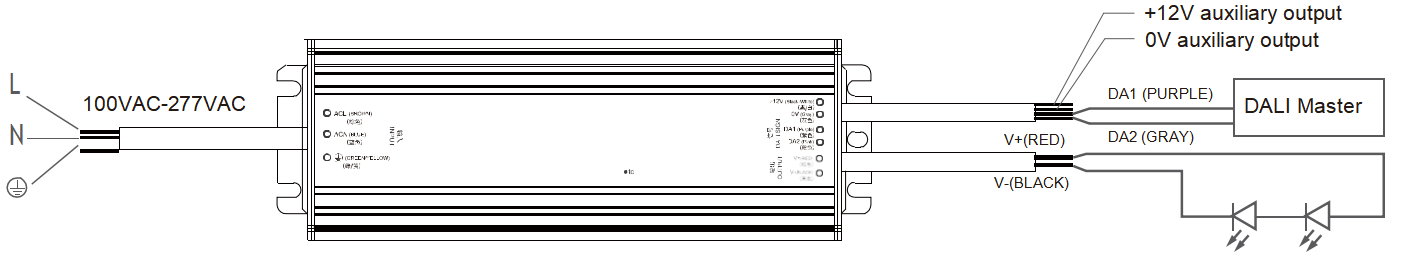

Wiring
Dimming Curve
Cautions
1.This product should be installed by qualified personnel.
2.Good heat dissipation conditions extend product life. Please install the product in a well-ventilated environment.
3.Please make sure LED power supply output voltage, current is used to meet the product requirements.
4.Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
5.In case of malfunction, do not repair it yourself.
※ The contents of this manual are updated without prior notice. If the function of the product you are using is inconsistent with the instructions, the function of the product shall prevail.Please contact us if you have any questions .
