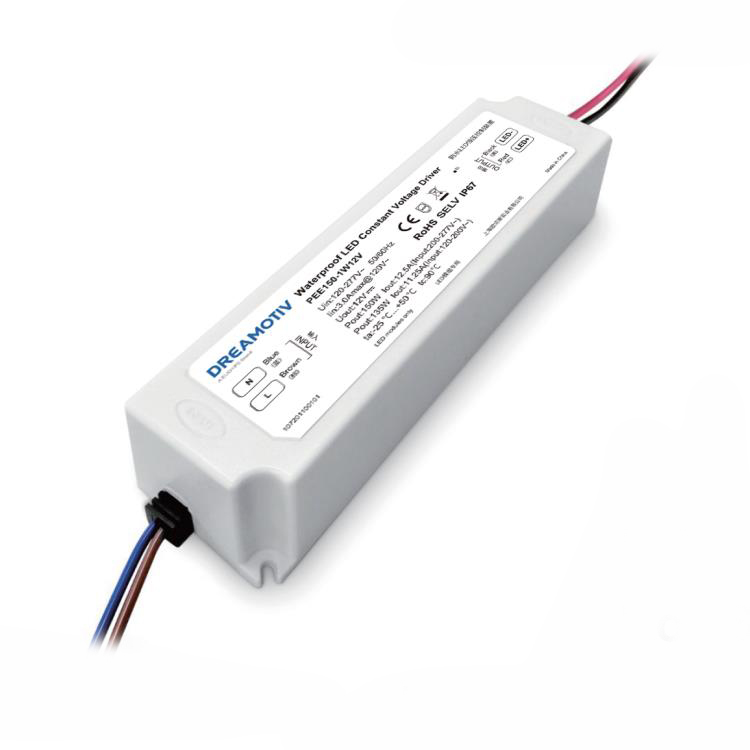

150W 12VDC Non-dimmable Waterproof CV Driver PEE150-1W12V
150W 12VDC Non-dimmable Waterproof CV Driver PEE150-1W12V
Features
·Width voltage input,full power output
·Insolated PC design
·Isolated design,safe and reliable
·Protections:Over load,Short circuit,over voltage
·Comply with UL/FCC CE/SELV
·Protection grades is as high as IP67
·2 years warranty
Technical Parameters
| Model | PEE150-1W12V | |
| Input | Efficiency | >87%@230VAC, Full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Power Factor | ≥0.5@230VAC, full load | |
| Current | 3.0Amax@120VAC | |
| Standby Power | <0.5W | |
| Inrush Current | Cold start 50A@230VAC | |
| Output | Current/Voltage/Power | 11.25A(Input:120-200V~), 12.5A(Input:200-277V~)/12VDC/135W(Input:120-200V~), 150W(Input:200-277V~) |
| Ripple Voltage | 120mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±4% | |
| Turn On Delay Time | <1.5s, at 230Vac | |
| Protection | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <18VDC Shut down the output, After restart recovers automatically. | |
| Over Current | <18A auto recovery when failure is removed | |
| Safety & EMC | Lightning Surge | L-N:2kV |
| Withstand Voltage | I/P-O/P:3000VAC/1min/5mA | |
| Safety Standards | UL8750(type”HL”),CSA C22.2 No.250.13-12 TUV EN61347-1, EAC TC004,UL60950-1,TUV EN60350-1, EN61347-2-13,J61347-1, J613447-2-13 GB19510.1,GB19510.14 | |
| EMC | EN55032(CISPR32)ClassB,EN61000-3-2 ClassA EN6100-3-3,EAC TP TC020 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN55024,EAC TP TC 020 | |
| Others | Working Temp. | -25℃~50℃ |
| Storage Temp.; Humidity | -40 ~85 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP67 | |
| Lifetime | 17,280h@tc:75℃ | |
| Warranty Condition | 2 years | |
| Switch Cycle | >50,000 times | |
| Packing Size | Net weight: 815g±5%/PCS; 20PCS/Carton; 17kg±5%/Carton; Carton Size: 324*247*240mm(L*W*H) | |
| Dimension | 190*61*38mm(L*W*H) | |
