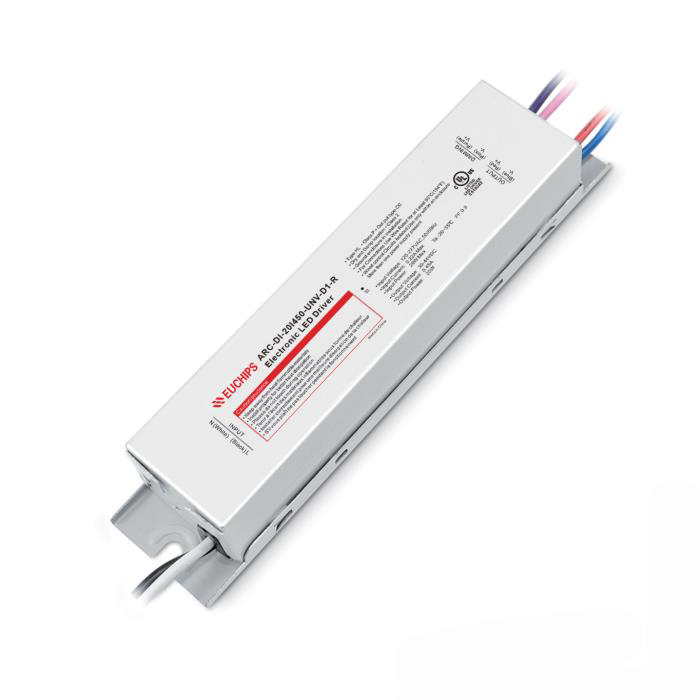

15-50 W 0-10V/DIP/PWM Dimmable ARC DI 15-50 W R Series
Features
· Supply Voltage 108-382Vac
· Great Surge Immunity 2.5k(ringwave)
· 50000Hour Life @ Tc=90℃
· 5Year Warranty@Tc<=90℃
· ±5% Output Current Accuracy
· 0-10V/External Switch / Dimmable
· UL Class P, Class 2
· Safety according to UL8750 & UL 1310
| Model No. | Input Voltage(VAC) |
Input Current(A) |
PF | Output Voltage(VDC) |
MAX Output power(W) |
MAX Iout（mA） |
Eff(Max) | Life at Tc 90℃(h) |
| ARC-DI-50I1400-UNV-DI-R | 120-277 | 0.60(Max) | 0.90 | 24-35 | 50 | 1400 | 86% | 50000 |
| ARC-DI-50I1400-UNV-DI+D3-R | 120-277 | 0.60(Max) | 0.90 | 24-35 | 50 | 1400 | 86% | 50000 |
| ARC-DI-50I300-UNV-DI-R(EX) | 120-277 | 0.60(Max) | 0.90 | 24-35 | 50 | 1400 | 86% | 50000 |
| ARC-DI-50I1400-UNV-DIS-R | 120-277 | 0.60(Max) | 0.90 | 24-35 | 50 | 1400 | 86% | 50000 |
| ARC-DI-50I1400-UNV-DIS+D3-R | 120-277 | 0.60(Max) | 0.90 | 24-35 | 50 | 1400 | 86% | 50000 |
| ARC-DI-50I300-UNV-DIS-R(EX) | 120-277 | 0.60(Max) | 0.90 | 24-35 | 50 | 1400 | 86% | 50000 |
| ARC-XX-AAIBBBB-CCC-XYZ-R | CCC | 0.18-0.6 | 0.90 | 24-50 | 15-50 | 300-1400 | 86% | 50000 |
Technical Parameters
| THD | <20%@70-100%load, refer to THD vs. Load curve |
| Inrush Current | 40A peak, 1.2ms duration, <0.25A2s@120Vac, Cold Start |
| Surge Protection | L-N 2.5KV L/N-PE 2.5KV The RING WAVE is IEC61000-4-12 |
| Leakage Current | 0.75mA max @277Vac 60Hz, UL8750 |
| Current Accuracy | ±5%Io |
| Ripple Current | Ip-p:8%Io max |
| Setup Time | 0.75s max |
| Short Circuit | Auto recovery. The output recovers when short is removed |
| EMC | FCC Part 15 Class A |
| Operating Temperature | -20℃～+55℃ ；10%RH～100%RH |
| Storage Temperature | -40℃～+85℃； 5%RH～100%RH |
| MTBF | ≥320,000 hours, 75℃ case temperature (MIL-HDBK-217F) |
| Case Temperature | 90℃ max, marked in the Tc point of label |
