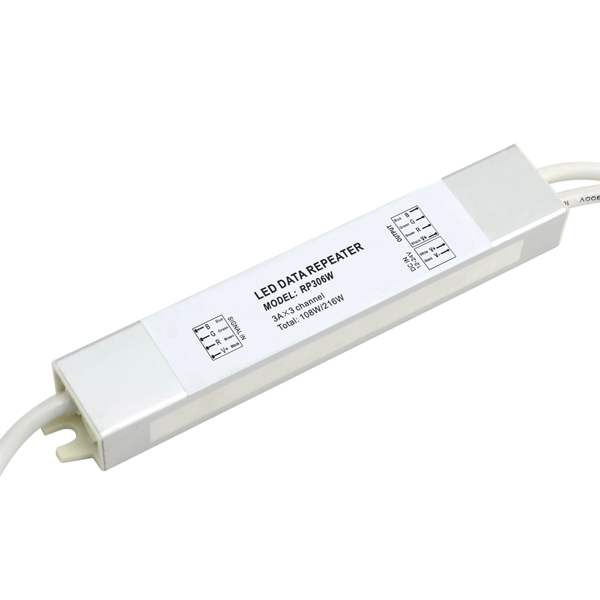

12-24VDC 3A*3ch Power Repeater RP306W

Short Description:

1. For power repeat of synchronous changing signal;

2. 3 channels RGB control,the max current of each channel up to 3A;

3. Accepts PWM control;

4. Match with many kinds of LED modules;

5. Waterproof level –IP68;

6. Theoretically limitless LED modules can be connected by the repeaters in series.


Product Detail

Product Tags

12-24VDC 3A*3ch Power Repeater RP306W

Features

1. For power repeat of synchronous changing signal;
2. 3 channels RGB control,the max current of each channel up to 3A;
3. Accepts PWM control;
4. Match with many kinds of LED modules;
5. Waterproof level –IP68;
6. Theoretically limitless LED modules can be connected by the repeaters in series.

Applications
1. Building Decoration: Business spaces, airports, subway;
2. Indoor Decoration: Lighting and back lighting for hospital, hotel, marketplace, square, dining-room, pub and etc;
3. AD solid word, sign and mark, signboard and billboard;
4. Be used as big area back lighting source.

Product Attributes

Product Name 12-24VDC 3A 3 Channels Power Repeater
Item RP306W
Power Supply DC 12-24V
I/O Channels 3
Power Output 3A(EACH CHANNEL MAX),12V,108W/24V,216W
Size 200(L)X31(W)X21(H) mm
Weight 208g
