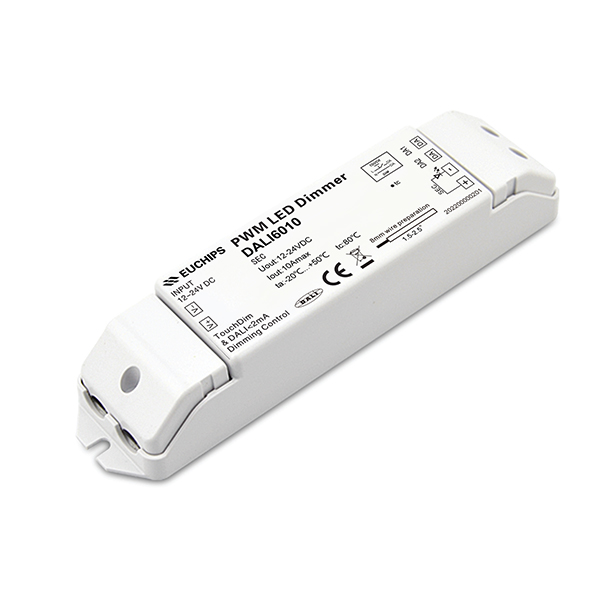

12-24VDC 10A*1ch PWM LED Dimmer DALI6010

Short Description:

1. Single channel constant voltage output, 10A

2. Meet DALI protocol IEC 62386

3. Dimming range from 0.1~100%

4. PWM digital dimming, no alter LED color rendering index

5. Suitable for indoor LED lighting application

6. Protections: short circuit, over load, over temperature


Product Detail

Product Tags

12-24VDC PWM LED Dimmer DALI6010

Features

1. Single channel constant voltage output, 10A

2. Meet DALI protocol IEC 62386

3. Dimming range from 0.1~100%

4. PWM digital dimming, no alter LED color rendering index

5. Suitable for indoor LED lighting application

6. Protections: short circuit, over load, over temperature

Technical Parameter



Model DALI6010
Output Voltage 12-24VDC
Current 10A
Power 120W(@12V)~240W(@24V)
Channels 1
Input Voltage 12-24VDC
Function Dimming Mode DALI, Touch DIM
Consumption Current 2mA
Protections Short Circuit Shut down the output, recovers automatically after fault removed
Over Lad Shut down the output, recovers automatically after fault removed
Over Temperature Shut down the output, recovers automatically after fault removed
Others Dimension 168*39*30mm(L*W*H)
G.W. 124g
Working Temp. -20~50⊥
Relative Humidity 20~90%RH
